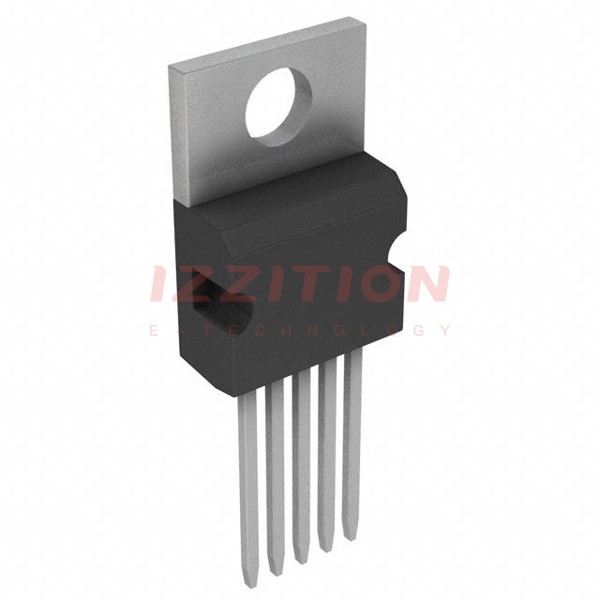

| Part Number | LM2576T-15 | LM2576T-15G | LM2577T-15 | LM2576T-015 | LM2576T-12 |
|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | onsemi | Texas Instruments | onsemi | National Semiconductor |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Active |
| Function | Step-Down | Step-Down | Step-Up, Step-Up/Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive or Negative | Positive | Positive or Negative | Positive |
| Topology | Buck | Buck | Boost, Flyback, Forward Converter | Buck | Buck |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 4V | 7V | 3.5V | 7V | 4V |
| Voltage - Input (Max) | 40V | 40V | 40V | 40V | 40V |
| Voltage - Output (Min/Fixed) | 15V | 15V | 15V | 15V | 12V |
| Voltage - Output (Max) | - | - | - | - | - |
| Current - Output | 3A | 3A | 3A (Switch) | 3A | 3A |
| Frequency - Switching | 52kHz | 52kHz | 52kHz | 52kHz | 52kHz |
| Synchronous Rectifier | No | No | No | No | No |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-220-5 | TO-220-5 | TO-220-5 | TO-220-5 | TO-220-5 |
| Supplier Device Package | TO-220-5 | TO-220-5 | TO-220-5 | TO-220-5 | TO-220-5 |
