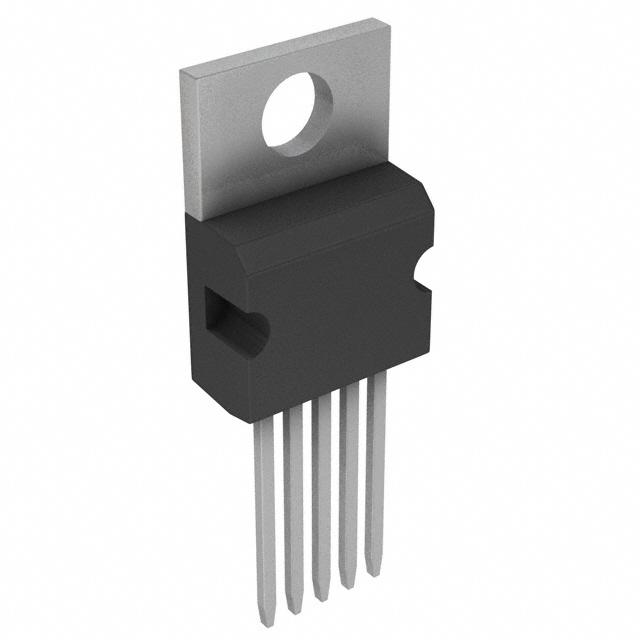

| Part Number | LM2575T-ADJ/NOPB | LM2575M-ADJ/NOPB | LM2575N-ADJ/NOPB | LM2575S-ADJ/NOPB |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Obsolete | Active |
| Function | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 4V | 4V | 4V | 4V |
| Voltage - Input (Max) | 40V | 40V | 40V | 40V |
| Voltage - Output (Min/Fixed) | 1.23V | 1.23V | 1.23V | 1.23V |
| Voltage - Output (Max) | 37V | 37V | 37V | 37V |
| Current - Output | 1A | 1A | 1A | 1A |
| Frequency - Switching | 52kHz | 52kHz | 52kHz | 52kHz |
| Synchronous Rectifier | No | No | No | No |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Surface Mount |
| Package / Case | TO-220-5 | 24-SOIC (0.295", 7.50mm Width) | 16-DIP (0.300", 7.62mm) | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA |
| Supplier Device Package | TO-220-5 | 24-SOIC | 16-PDIP | DDPAK/TO-263-5 |
