Please send RFQ , we will respond immediately.

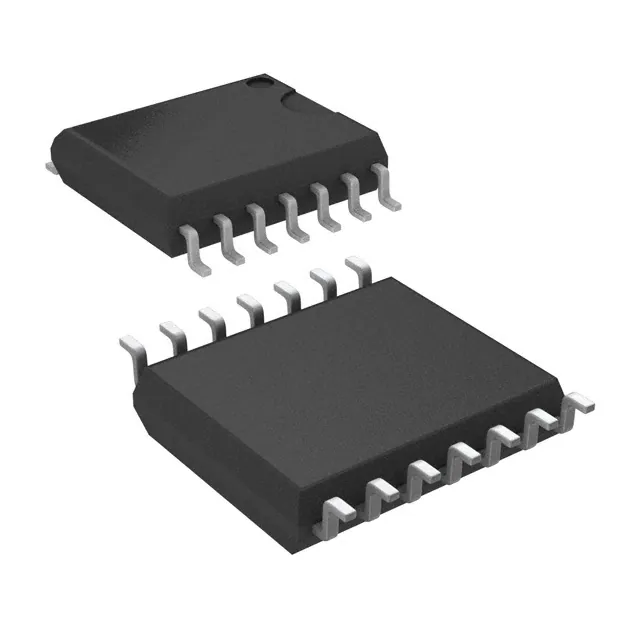

| Part Number | LM2574M-12/NOPB | LM2574N-12/NOPB | LM2574MX-12/NOPB | LM2574M-15/NOPB |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Discontinued at Digi-Key |
| Function | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck |
| Output Type | Fixed | Fixed | Fixed | Fixed |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 4V | 4V | 4V | 4V |
| Voltage - Input (Max) | 40V | 40V | 40V | 40V |
| Voltage - Output (Min/Fixed) | 12V | 12V | 12V | 15V |
| Voltage - Output (Max) | - | - | - | - |
| Current - Output | 500mA | 500mA | 500mA | 500mA |
| Frequency - Switching | 52kHz | 52kHz | 52kHz | 52kHz |
| Synchronous Rectifier | No | No | No | No |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Through Hole | Surface Mount | Surface Mount |
| Package / Case | 14-SOIC (0.295", 7.50mm Width) | 8-DIP (0.300", 7.62mm) | 14-SOIC (0.295", 7.50mm Width) | 14-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 14-SOIC | 8-PDIP | 14-SOIC | 14-SOIC |
