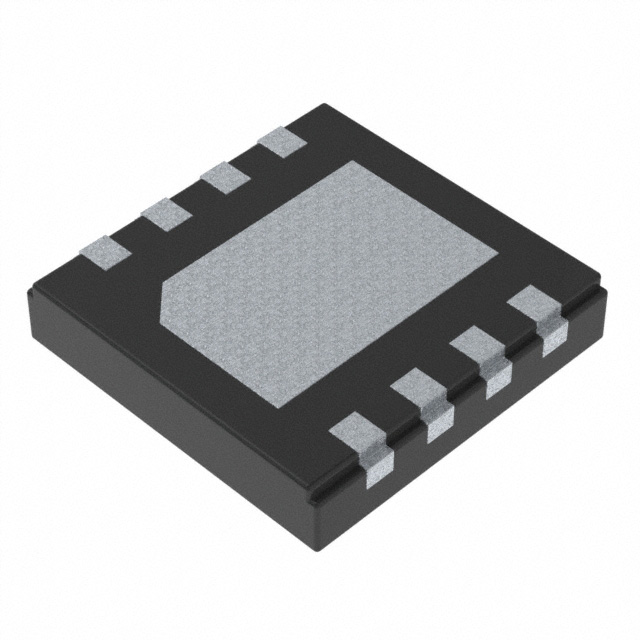

| Part Number | LM25184NGUR | LM25180NGUR | LM25183NGUR |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active |
| Function | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up/Step-Down |
| Output Configuration | Positive | Positive | Positive |
| Topology | Flyback | Flyback | Flyback |
| Output Type | Fixed | Fixed | Adjustable |
| Number of Outputs | 1 | 1 | 1 |
| Voltage - Input (Min) | 4.5V | 4.5V | 4.5V |
| Voltage - Input (Max) | 42V | 42V | 42V |
| Voltage - Output (Min/Fixed) | 12V | 1.21V | 1.21V |
| Voltage - Output (Max) | - | 65V (Switch) | 42V |
| Current - Output | 1A | - | 2.5A |
| Frequency - Switching | 12kHz ~ 350kHz | 12kHz ~ 350kHz | 12kHz ~ 350kHz |
| Synchronous Rectifier | No | No | No |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 85°C |
| Mounting Type | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount |
| Package / Case | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad |
| Supplier Device Package | 8-WSON (4x4) | 8-WSON (4x4) | 8-WSON (4x4) |
