| Part Number | LM25101BSDX/NOPB | LM5101BSDX/NOPB | LM25101CSDX/NOPB | LM25101ASDX/NOPB | LM25101BSD/NOPB |
|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active |
| Driven Configuration | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge |
| Channel Type | Independent | Independent | Independent | Independent | Independent |
| Number of Drivers | 2 | 2 | 2 | 2 | 2 |
| Gate Type | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET |
| Voltage - Supply | 9V ~ 14V | 9V ~ 14V | 9V ~ 14V | 9V ~ 14V | 9V ~ 14V |
| Logic Voltage - VIL, VIH | 2.3V, - | 2.3V, - | 2.3V, - | 2.3V, - | 2.3V, - |
| Current - Peak Output (Source, Sink) | 2A, 2A | 2A, 2A | 1A, 1A | 3A, 3A | 2A, 2A |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 100 V | 118 V | 100 V | 100 V | 100 V |
| Rise / Fall Time (Typ) | 570ns, 430ns | 570ns, 430ns | 990ns, 715ns | 430ns, 260ns | 570ns, 430ns |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

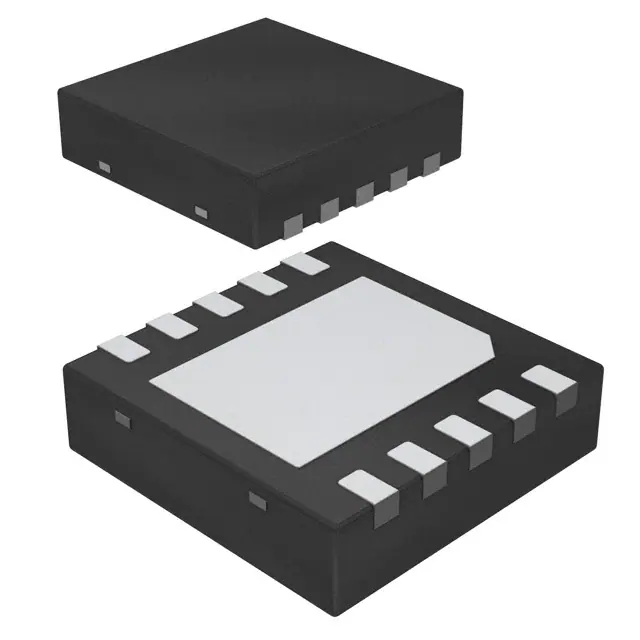

| Package / Case | 10-WDFN Exposed Pad | 10-WDFN Exposed Pad | 10-WDFN Exposed Pad | 10-WDFN Exposed Pad | 10-WDFN Exposed Pad |
| Supplier Device Package | 10-WSON (4x4) | 10-WSON (4x4) | 10-WSON (4x4) | 10-WSON (4x4) | 10-WSON (4x4) |
