| Part Number | LM22677TJE-5.0/NOPB | LM22679TJE-5.0/NOPB | LM22678TJE-5.0/NOPB | LM22670TJE-5.0/NOPB | LM22673TJE-5.0/NOPB | LM22676TJE-5.0/NOPB | LM22677TJ-5.0/NOPB |
|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Function | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck | Buck | Buck | Buck |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 4.5V | 4.5V | 4.5V | 4.5V | 4.5V | 4.5V | 4.5V |
| Voltage - Input (Max) | 42V | 42V | 42V | 42V | 42V | 42V | 42V |
| Voltage - Output (Min/Fixed) | 5V | 5V | 5V | 5V | 5V | 5V | 5V |
| Voltage - Output (Max) | - | - | - | - | - | - | - |
| Current - Output | 5A | 5A | 5A | 3A | 3A | 3A | 5A |
| Frequency - Switching | 500kHz | 500kHz | 500kHz | 500kHz | 500kHz | 500kHz | 500kHz |
| Synchronous Rectifier | No | No | No | No | No | No | No |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

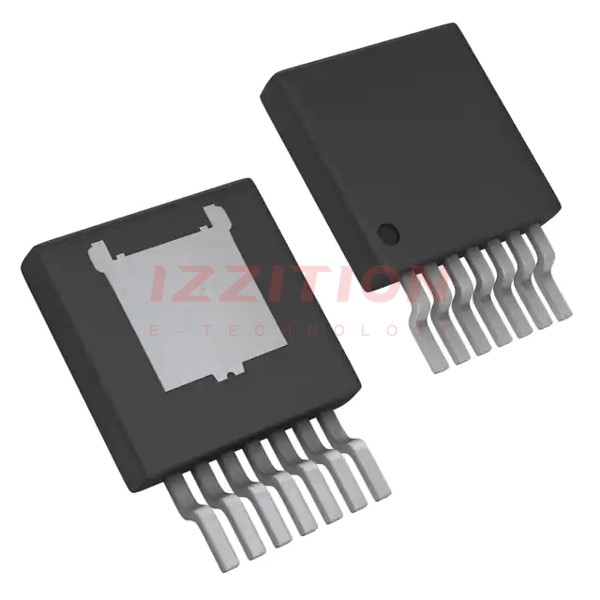

| Package / Case | TO-263-7 Thin | TO-263-7 Thin | TO-263-7 Thin | TO-263-7 Thin | TO-263-7 Thin | TO-263-7 Thin | TO-263-7 Thin |
| Supplier Device Package | TO-263-7 Thin | TO-263-7 Thin | TO-263-7 Thin | TO-263-7 Thin | TO-263-7 Thin | TO-263-7 Thin | TO-263-7 Thin |
