Please send RFQ , we will respond immediately.

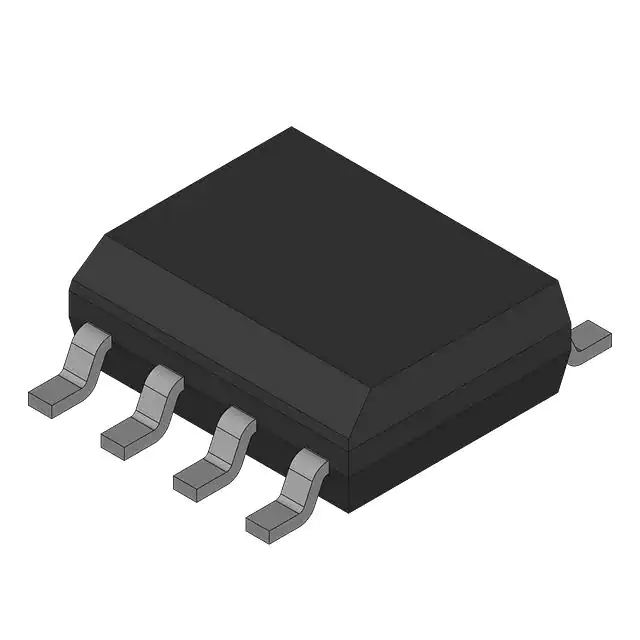

| Part Number | LM22673QMR-ADJ/NOPB | LM22675QMR-ADJ/NOPB | LM22673QMRE-ADJ/NOPB | LM22674QMR-ADJ/NOPB | LM22673QMRX-ADJ/NOPB | LM22676QMR-ADJ/NOPB | LM22670QMR-ADJ/NOPB | LM22671QMR-ADJ/NOPB | LM22672QMR-ADJ/NOPB | LM22673MR-ADJ/NOPB |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Function | - | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | - | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive |
| Topology | - | Buck | Buck | Buck | Buck | Buck | Buck | Buck | Buck | Buck |
| Output Type | - | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Outputs | - | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | - | 4.5V | 4.5V | 4.5V | 4.5V | 4.5V | 4.5V | 4.5V | 4.5V | 4.5V |
| Voltage - Input (Max) | - | 42V | 42V | 42V | 42V | 42V | 42V | 42V | 42V | 42V |
| Voltage - Output (Min/Fixed) | - | 1.285V | 1.285V | 1.285V | 1.285V | 1.285V | 1.285V | 1.285V | 1.285V | 1.285V |
| Voltage - Output (Max) | - | 37V | 37V | 37V | 37V | 37V | 37V | 37V | 37V | 37V |
| Current - Output | - | 1A | 3A | 500mA | 3A | 3A | 3A | 500mA | 1A | 3A |
| Frequency - Switching | - | 500kHz | 500kHz | 500kHz | 500kHz | 500kHz | 500kHz | 500kHz | 500kHz | 500kHz |
| Synchronous Rectifier | - | No | No | No | No | No | No | No | No | No |
| Operating Temperature | - | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | - | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | - | 8-PowerSOIC (0.154", 3.90mm Width) | 8-PowerSOIC (0.154", 3.90mm Width) | 8-PowerSOIC (0.154", 3.90mm Width) | 8-PowerSOIC (0.154", 3.90mm Width) | 8-PowerSOIC (0.154", 3.90mm Width) | 8-PowerSOIC (0.154", 3.90mm Width) | 8-PowerSOIC (0.154", 3.90mm Width) | 8-PowerSOIC (0.154", 3.90mm Width) | 8-PowerSOIC (0.154", 3.90mm Width) |
| Supplier Device Package | - | 8-SO PowerPad | 8-SO PowerPad | 8-SO PowerPad | 8-SO PowerPad | 8-SO PowerPad | 8-SO PowerPad | 8-SO PowerPad | 8-SO PowerPad | 8-SO PowerPad |
