| Part Number | LM1558H/NOPB | LM158H/NOPB | LM1458H/NOPB |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | National Semiconductor |
| Product Status | Active | Active | Active |
| Amplifier Type | General Purpose | General Purpose | General Purpose |
| Number of Circuits | 2 | 2 | 2 |
| Output Type | - | - | - |
| Slew Rate | 0.5V/µs | - | 0.5V/µs |
| Gain Bandwidth Product | 1 MHz | 1 MHz | 1 MHz |
| -3db Bandwidth | - | - | - |
| Current - Input Bias | 200 nA | 40 nA | 200 nA |
| Voltage - Input Offset | 1 mV | 2 mV | 1 mV |
| Current - Supply | 3mA (x2 Channels) | 1mA | 3mA (x2 Channels) |
| Current - Output / Channel | - | 40 mA | - |
| Voltage - Supply Span (Min) | 44 V | 3 V | 36 V |
| Voltage - Supply Span (Max) | 44 V | 32 V | 36 V |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | 0°C ~ 70°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |

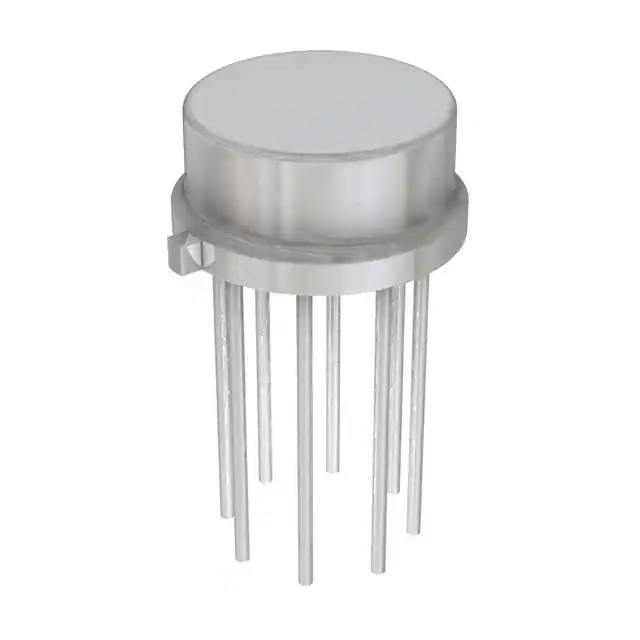

| Package / Case | TO-99-8 Metal Can | TO-99-8 Metal Can | TO-99-8 Metal Can |
| Supplier Device Package | TO-99-8 | TO-99-8 | TO-99-8 |
