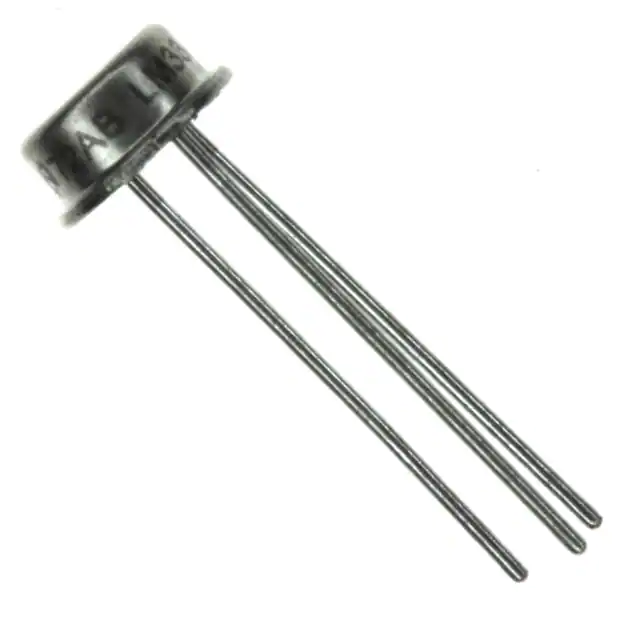

| Part Number | LM136AH-2.5 | LM136H-2.5 |
|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments |
| Product Status | Active | Active |
| Reference Type | Shunt | Shunt |
| Output Type | Fixed | Fixed |
| Voltage - Output (Min/Fixed) | 2.49V | 2.49V |
| Voltage - Output (Max) | - | - |
| Current - Output | 10 mA | 10 mA |
| Tolerance | ±1% | ±2% |
| Temperature Coefficient | - | - |
| Noise - 0.1Hz to 10Hz | - | - |
| Noise - 10Hz to 10kHz | - | - |
| Voltage - Input | - | - |
| Current - Supply | - | - |
| Current - Cathode | 400 µA | 400 µA |
| Operating Temperature | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | TO-206AB, TO-46-3 Metal Can | TO-206AB, TO-46-3 Metal Can |
| Supplier Device Package | TO-46-3 | TO-46-3 |
