| Part Number | LM1117LD-1.8/NOPB | LM1117LDX-1.8/NOPB |
|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments |
| Product Status | Active | Active |
| Output Configuration | Positive | Positive |
| Output Type | Fixed | Fixed |
| Number of Regulators | 1 | 1 |
| Voltage - Input (Max) | 15V | 15V |
| Voltage - Output (Min/Fixed) | 1.8V | 1.8V |
| Voltage - Output (Max) | - | - |
| Voltage Dropout (Max) | 1.2V @ 800mA | 1.2V @ 800mA |
| Current - Output | 800mA | 800mA |
| Current - Quiescent (Iq) | 5 mA | 5 mA |
| Current - Supply (Max) | 10 mA | 10 mA |
| PSRR | 75dB (120Hz) | 75dB (120Hz) |
| Control Features | - | - |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | 0°C ~ 125°C | 0°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount |

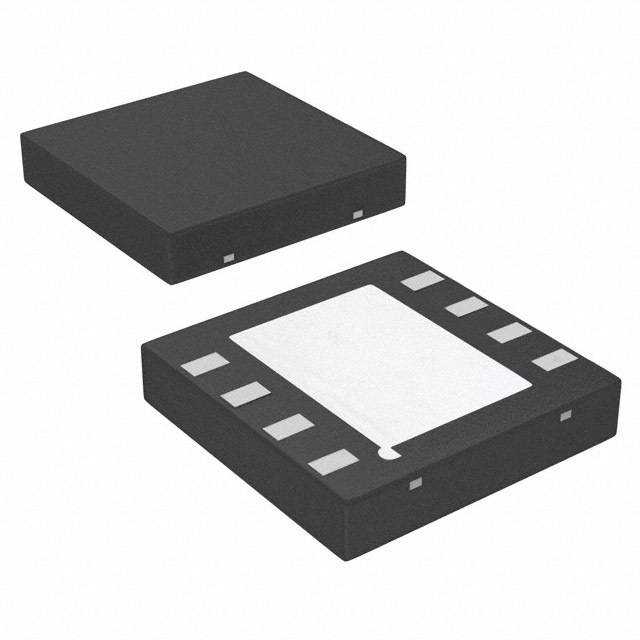

| Package / Case | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad |
| Supplier Device Package | 8-WSON (4x4) | 8-WSON (4x4) |
