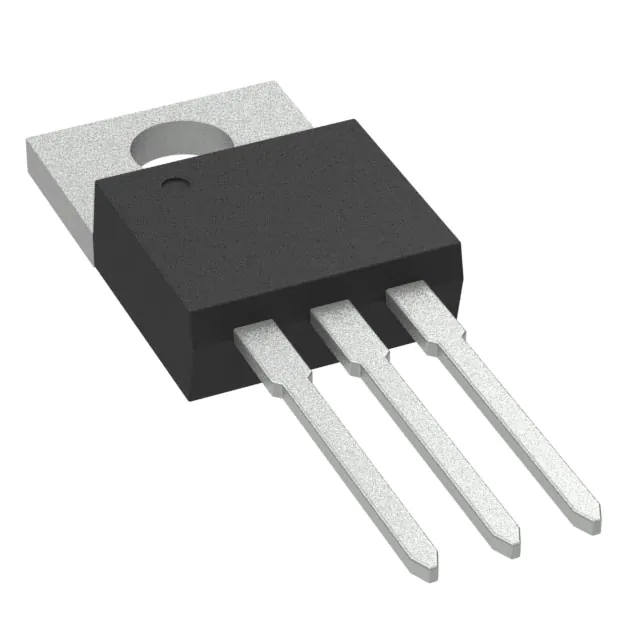

| Part Number | LM1086IT-ADJ/NOPB | LM1084IT-ADJ/NOPB | LM1085IT-ADJ/NOPB | LM1086CT-ADJ/NOPB | LM1086IS-ADJ/NOPB |
|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 29V | 29V | 29V | 29V | 29V |
| Voltage - Output (Min/Fixed) | 1.2V | 1.25V | 1.25V | 1.2V | 1.2V |
| Voltage - Output (Max) | 15V | 27.5V | 15V | 15V | 15V |
| Voltage Dropout (Max) | 1.5V @ 1.5A | 1.5V @ 5A | 1.5V @ 3A | 1.5V @ 1.5A | 1.5V @ 1.5A |
| Current - Output | 1.5A | 5A | 3A | 1.5A | 1.5A |
| Current - Quiescent (Iq) | 5 mA | 10 mA | 10 mA | 5 mA | 5 mA |
| Current - Supply (Max) | 10 mA | - | - | 10 mA | 10 mA |
| PSRR | 75dB (120Hz) | 75dB (120Hz) | 75dB (120Hz) | 75dB (120Hz) | 75dB (120Hz) |
| Control Features | - | - | - | - | - |
| Protection Features | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C (TJ) | 0°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Surface Mount |
| Package / Case | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA |
| Supplier Device Package | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 | DDPAK/TO-263-3 |
