Please send RFQ , we will respond immediately.

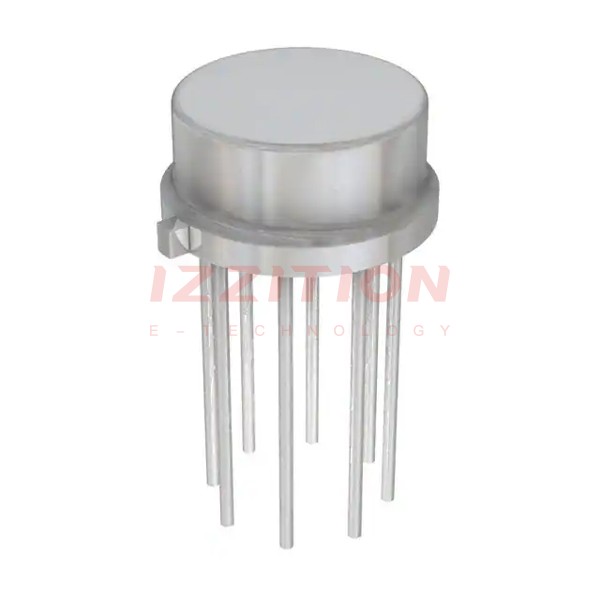

| Part Number | LM101AH | LM101AJ | LM201AH |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | National Semiconductor |
| Product Status | Active | Active | Active |
| Amplifier Type | General Purpose | General Purpose | General Purpose |
| Number of Circuits | 1 | 1 | 1 |
| Output Type | - | - | - |
| Slew Rate | 0.5V/µs | 0.5V/µs | 0.5V/µs |
| Gain Bandwidth Product | 1 MHz | 1 MHz | 1 MHz |
| -3db Bandwidth | - | - | - |
| Current - Input Bias | 30 nA | 30 nA | 30 nA |
| Voltage - Input Offset | 700 µV | 700 µV | 700 µV |
| Current - Supply | 1.8mA | 1.8mA | 1.8mA |
| Current - Output / Channel | - | - | - |
| Voltage - Supply Span (Min) | 10 V | 10 V | 10 V |
| Voltage - Supply Span (Max) | 44 V | 44 V | 44 V |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -25°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-99-8 Metal Can | 8-CDIP (0.300", 7.62mm) | TO-99-8 Metal Can |
| Supplier Device Package | TO-99-8 | 8-CDIP | TO-99-8 |
