| Part Number | LF356H | LF356M | LF356N | LF156H | LF256H |
|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | National Semiconductor |
| Product Status | Active | Not For New Designs | Obsolete | Active | Active |
| Amplifier Type | J-FET | J-FET | J-FET | J-FET | J-FET |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 |
| Output Type | - | - | - | - | - |
| Slew Rate | 12V/µs | 12V/µs | 12V/µs | 12V/µs | 12V/µs |
| Gain Bandwidth Product | 5 MHz | 5 MHz | 5 MHz | 5 MHz | 5 kHz |
| -3db Bandwidth | - | - | - | - | - |
| Current - Input Bias | 30 pA | 30 pA | 30 pA | 30 pA | 30 pA |
| Voltage - Input Offset | 3 mV | 3 mV | 3 mV | 3 mV | 3 µV |
| Current - Supply | 5mA | 5mA | 5mA | 5mA | 5mA |
| Current - Output / Channel | - | - | - | - | - |
| Voltage - Supply Span (Min) | 30 V | 30 V | 30 V | 10 V | 10 V |
| Voltage - Supply Span (Max) | 30 V | 30 V | 30 V | 44 V | 44 V |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | -55°C ~ 125°C | -25°C ~ 85°C |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Through Hole | Through Hole |

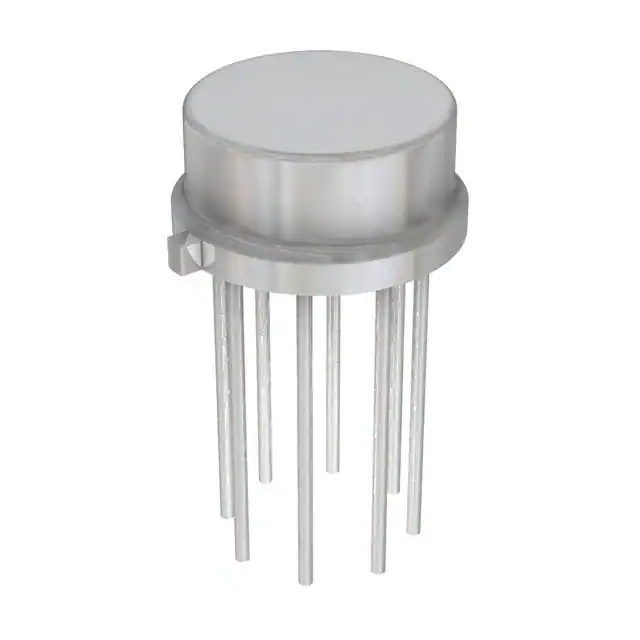

| Package / Case | TO-99-8 Metal Can | 8-SOIC (0.154", 3.90mm Width) | 8-DIP (0.300", 7.62mm) | TO-99-8 Metal Can | TO-99-8 Metal Can |
| Supplier Device Package | TO-99-8 | 8-SOIC | 8-PDIP | TO-99-8 | TO-99-8 |
