Texas Instruments-ISO7741FQDWWQ1 - Digital Isolators Product Specifications and Latest Quotes

Technology:	Capacitive Coupling
Type:	General Purpose
Isolated Power:	No
Number of Channels:	4
Inputs - Side 1/Side 2:	3/1
Channel Type:	Unidirectional
Voltage - Isolation:	5700Vrms
Common Mode Transient Immunity (Min):	85kV/µs
Data Rate:	100Mbps
Propagation Delay tpLH / tpHL (Max):	16ns, 16ns
Pulse Width Distortion (Max):	4.9ns
Rise / Fall Time (Typ):	2.4ns, 2.4ns
Voltage - Supply:	2.25V ~ 5.5V
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	16-SOIC (0.551", 14.00mm Width)
Supplier Device Package:	16-SOIC

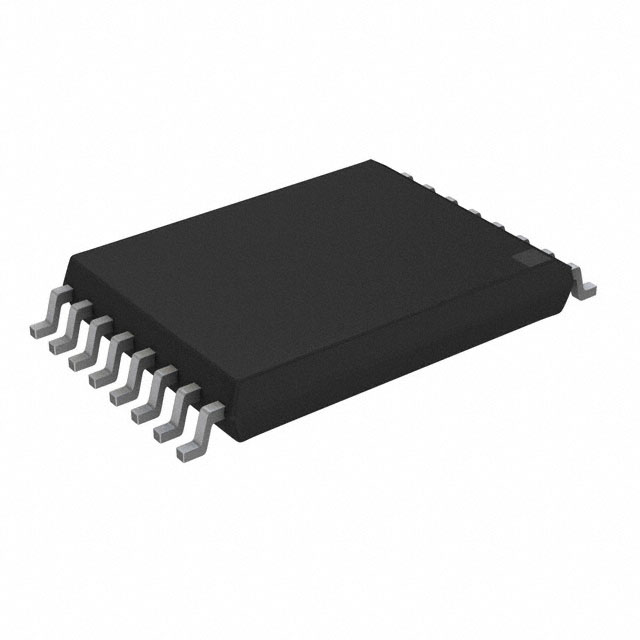

Texas Instruments ISO7741FQDWWQ1
