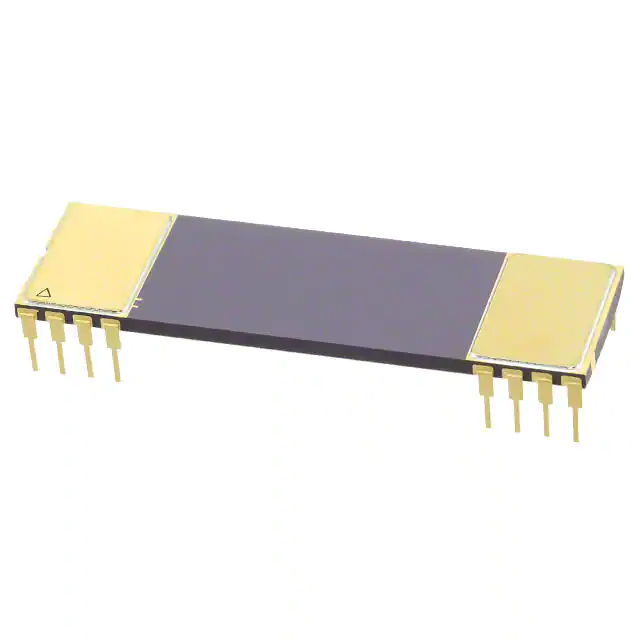

| Part Number | ISO106B | ISO102B | ISO103B | ISO106 |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Amplifier Type | Isolation | Isolation | Isolation | Isolation |
| Number of Circuits | 1 | 1 | 1 | 1 |
| Output Type | - | - | - | - |
| Slew Rate | 0.5V/µs | 0.5V/µs | 1.5V/µs | 0.5V/µs |
| Gain Bandwidth Product | - | - | - | - |
| -3db Bandwidth | 70 kHz | 70 kHz | 20 kHz | 70 kHz |
| Current - Input Bias | - | - | - | - |
| Voltage - Input Offset | 25 mV | 15 mV | 20 mV | 25 mV |
| Current - Supply | 25mA | 25mA | 90mA | 25mA |
| Current - Output / Channel | 5 mA | 5 mA | 15 mA | 5 mA |
| Voltage - Supply Span (Min) | 20 V | 20 V | 20 V | 20 V |
| Voltage - Supply Span (Max) | 40 V | 40 V | 36 V | 40 V |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 40-CDIP (0.600", 15.24mm), 16 Leads | 24-CDIP (0.600", 15.24mm), 16 Leads | 24-CDIP (0.600", 15.24mm), 16 Leads | 40-CDIP (0.600", 15.24mm), 16 Leads |
| Supplier Device Package | 16-CDIP | 16-CDIP | 16-CDIP | 16-CDIP |
