Please send RFQ , we will respond immediately.
| Part Number | INA4290A3IRGVR | INA4290A3IRGVT | INA4290A4IRGVR | INA4290A5IRGVR | INA4290A1IRGVR | INA4290A2IRGVR |
|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active | Active |
| Amplifier Type | Current Sense | Current Sense | Current Sense | Current Sense | Current Sense | Current Sense |
| Number of Circuits | 4 | 4 | 4 | 4 | 4 | 4 |
| Output Type | - | - | - | - | - | - |
| Slew Rate | 2V/µs | 2V/µs | 2V/µs | 2V/µs | 2V/µs | 2V/µs |
| Gain Bandwidth Product | 1.1 MHz | 1.1 MHz | 1.1 MHz | 1.1 MHz | 1.1 MHz | 1.1 MHz |
| -3db Bandwidth | - | - | - | - | - | - |
| Current - Input Bias | 20 µA | 20 µA | 20 µA | 20 µA | 20 µA | 20 µA |
| Voltage - Input Offset | 6 µV | 6 µV | 6 µV | 6 µV | 6 µV | 6 µV |
| Current - Supply | 1.25mA (x4 Channels) | 1.25mA (x4 Channels) | 1.25mA (x4 Channels) | 1.25mA (x4 Channels) | 1.25mA (x4 Channels) | 1.25mA (x4 Channels) |
| Current - Output / Channel | - | - | - | - | - | - |
| Voltage - Supply Span (Min) | 2.7 V | 2.7 V | 2.7 V | 2.7 V | 2.7 V | 2.7 V |
| Voltage - Supply Span (Max) | 20 V | 20 V | 20 V | 20 V | 20 V | 20 V |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

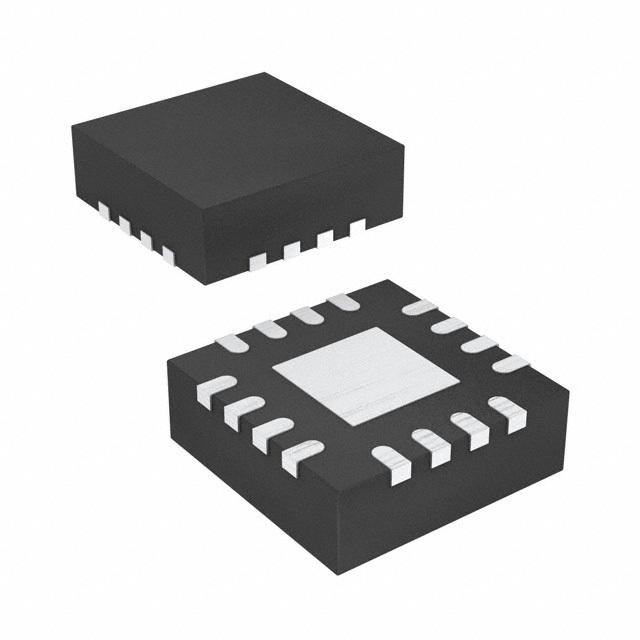

| Package / Case | 16-VQFN Exposed Pad | 16-VQFN Exposed Pad | 16-VQFN Exposed Pad | 16-VQFN Exposed Pad | 16-VQFN Exposed Pad | 16-VQFN Exposed Pad |
| Supplier Device Package | 16-VQFN (4x4) | 16-VQFN (4x4) | 16-VQFN (4x4) | 16-VQFN (4x4) | 16-VQFN (4x4) | 16-VQFN (4x4) |
