Texas Instruments-INA214CIRSWR - Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps Product Specifications and Latest Quotes

Part Number	INA214CIRSWR	INA214CIRSWT	INA215CIRSWR	INA211CIRSWR	INA212CIRSWR	INA213CIRSWR	INA214AIRSWR	INA214BIRSWR
Manufacturer	Texas Instruments	Texas Instruments	Texas Instruments	Texas Instruments	Texas Instruments	Texas Instruments	Texas Instruments	Texas Instruments
Product Status	Active	Active	Active	Active	Active	Active	Active	Active
Amplifier Type	Current Sense	Current Sense	Current Sense	Current Sense	Current Sense	Current Sense	Current Sense	Current Sense
Number of Circuits	1	1	1	1	1	1	1	1
Output Type	-	-	-	-	-	-	-	-
Slew Rate	0.4V/µs	0.4V/µs	0.4V/µs	0.4V/µs	0.4V/µs	0.4V/µs	0.4V/µs	0.4V/µs
Gain Bandwidth Product	30 kHz	30 kHz	40 kHz	7 kHz	4 kHz	80 kHz	30 kHz	14 kHz
-3db Bandwidth	-	-	-	-	-	-	-	-
Current - Input Bias	28 µA	28 µA	28 µA	28 µA	28 µA	28 µA	28 µA	28 µA
Voltage - Input Offset	1 µV	1 µV	1 µV	550 mV	550 mV	5 µV	1 µV	1 µV
Current - Supply	65µA	65µA	65µA	65µA	65µA	65µA	65µA	65µA
Current - Output / Channel	-	-	-	-	-	-	-	-
Voltage - Supply Span (Min)	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V
Voltage - Supply Span (Max)	26 V	26 V	26 V	26 V	26 V	26 V	26 V	26 V
Operating Temperature	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C	-40°C ~ 125°C
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	10-UFQFN	10-UFQFN	10-UFQFN	10-UFQFN	10-UFQFN	10-UFQFN	10-UFQFN	10-UFQFN
Supplier Device Package	10-UQFN (1.8x1.4)	10-UQFN (1.8x1.4)	10-UQFN (1.8x1.4)	10-UQFN (1.8x1.4)	10-UQFN (1.8x1.4)	10-UQFN (1.8x1.4)	10-UQFN (1.8x1.4)	10-UQFN (1.8x1.4)

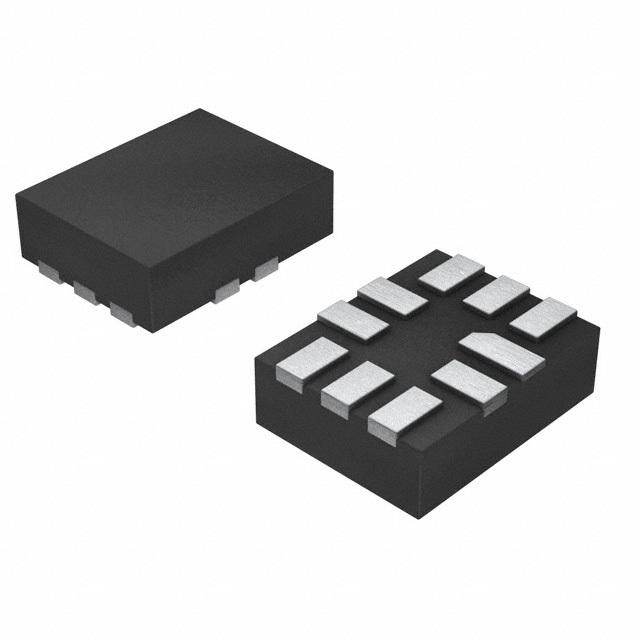

Texas Instruments INA214CIRSWR
