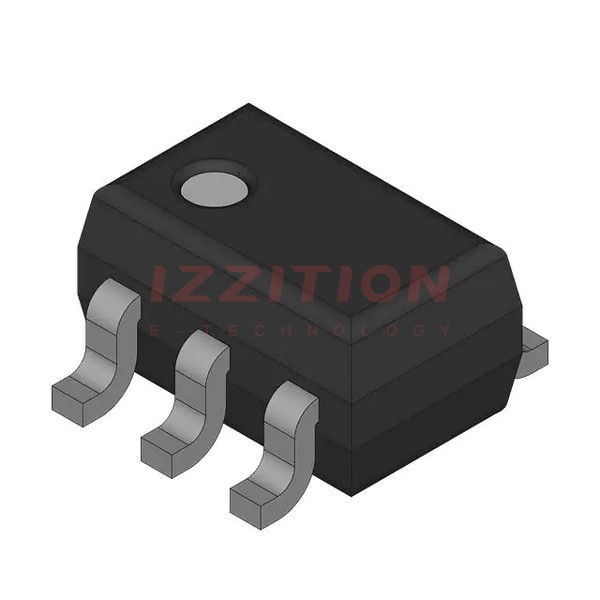

| Part Number | INA212BQDCKRQ1 | INA213BQDCKRQ1 | INA214BQDCKRQ1 | INA215BQDCKRQ1 | INA212CQDCKRQ1 | INA210BQDCKRQ1 | INA211BQDCKRQ1 | INA212AQDCKRQ1 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Amplifier Type | Current Sense | Current Sense | Current Sense | Current Sense | Current Sense | Current Sense | Current Sense | Current Sense |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Output Type | - | - | - | - | - | - | - | - |
| Slew Rate | 0.4V/µs | 0.4V/µs | 0.4V/µs | 0.4V/µs | 0.4V/µs | 0.4V/µs | 0.4V/µs | 0.4V/µs |
| Gain Bandwidth Product | 14 kHz | 14 kHz | 14 kHz | 40 kHz | 4 kHz | 14 kHz | 14 kHz | 4 kHz |
| -3db Bandwidth | - | - | - | - | - | - | - | - |
| Current - Input Bias | 28 µA | 28 µA | 28 µA | 28 µA | 28 µA | 28 µA | 28 µA | 28 µA |
| Voltage - Input Offset | 0.55 µV | 5 µV | 1 µV | 1 µV | 0.55 µV | 0.55 µV | 0.55 µV | 0.55 µV |
| Current - Supply | 65µA | 65µA | 65µA | 65µA | 65µA | 65µA | 65µA | 65µA |
| Current - Output / Channel | - | - | - | - | - | - | - | - |
| Voltage - Supply Span (Min) | 2.7 V | 2.7 V | 2.7 V | 2.7 V | 2.7 V | 2.7 V | 2.7 V | 2.7 V |
| Voltage - Supply Span (Max) | 26 V | 26 V | 26 V | 26 V | 26 V | 26 V | 26 V | 26 V |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -55°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SC-70-6 | SC-70-6 | SC-70-6 | SC-70-6 | SC-70-6 | SC-70-6 | SC-70-6 | SC-70-6 |
