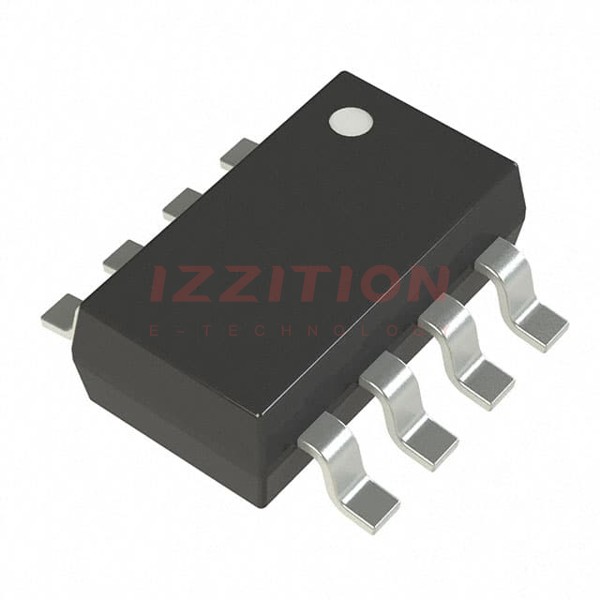

| Part Number | INA186A4QDBVRQ1 | INA186A5QDBVRQ1 | INA180A4QDBVRQ1 | INA181A4QDBVRQ1 | INA186A1QDBVRQ1 | INA186A2QDBVRQ1 | INA186A3QDBVRQ1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Amplifier Type | Current Sense | Current Sense | Current Sense | Current Sense | Current Sense | Current Sense | Current Sense |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Output Type | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail |
| Slew Rate | 0.3V/µs | 0.3V/µs | 2V/µs | 2V/µs | 0.3V/µs | 0.3V/µs | 0.3V/µs |
| Gain Bandwidth Product | - | - | 105 kHz | 105 kHz | - | - | - |
| -3db Bandwidth | 33 kHz | 27 kHz | - | - | 45 kHz | 37 kHz | 35 kHz |
| Current - Input Bias | 500 pA | 500 pA | 80 µA | 75 µA | 500 pA | 500 pA | 500 pA |
| Voltage - Input Offset | 3 µV | 3 µV | 100 µV | 100 µV | 3 µV | 3 µV | 3 µV |
| Current - Supply | 48µA | 48µA | 197µA | 195µA | 48µA | 48µA | 48µA |
| Current - Output / Channel | - | - | - | 8 mA | - | - | - |
| Voltage - Supply Span (Min) | 1.7 V | 1.7 V | 2.7 V | 2.7 V | 1.7 V | 1.7 V | 1.7 V |
| Voltage - Supply Span (Max) | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOT-23-8 | SOT-23-8 | SC-74A, SOT-753 | SOT-23-6 | SC-74A, SOT-753 | SOT-23-8 | SC-74A, SOT-753 |
| Supplier Device Package | TSOT-23-8 | TSOT-23-8 | SOT-23-5 | SOT-23-6 | SOT-23-5 | TSOT-23-8 | SOT-23-5 |
