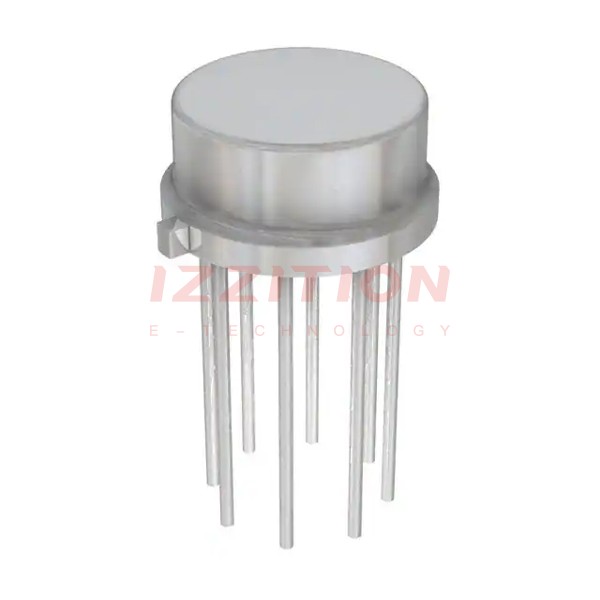

| Part Number | INA105AM | INA105BM | INA101AM |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs |
| Amplifier Type | Differential | Differential | Instrumentation |
| Number of Circuits | 1 | 1 | 1 |
| Output Type | - | - | - |
| Slew Rate | 3V/µs | 3V/µs | 0.4V/µs |
| Gain Bandwidth Product | - | - | - |
| -3db Bandwidth | 1 MHz | 1 MHz | 300 kHz |
| Current - Input Bias | - | - | 15 nA |
| Voltage - Input Offset | 50 µV | 50 µV | 25 µV |
| Current - Supply | 1.5mA | 1.5mA | 6.7mA |
| Current - Output / Channel | 20 mA | 20 mA | 10 mA |
| Voltage - Supply Span (Min) | 10 V | 10 V | 10 V |
| Voltage - Supply Span (Max) | 36 V | 36 V | 40 V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -25°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-99-8 Metal Can | TO-99-8 Metal Can | TO-100-10 Metal Can |
| Supplier Device Package | TO-99-8 | TO-99-8 | TO-100-10 |
