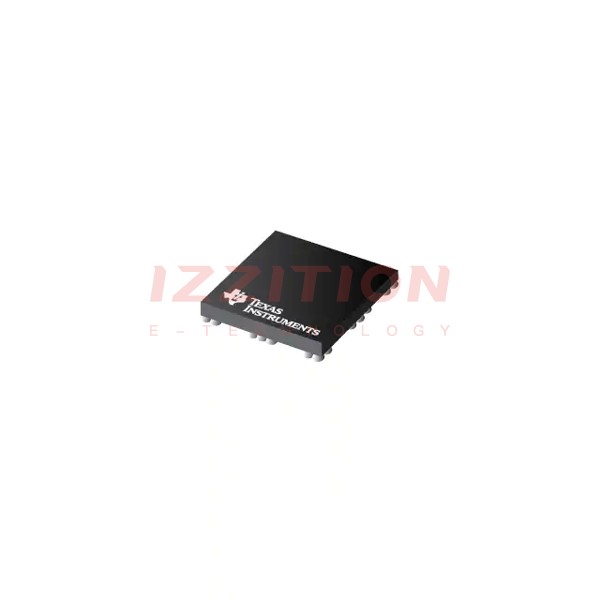

| Part Number | HD3SS212ZXHR | HD3SS215ZXHR | HD3SS214ZXHR | HD3SS213ZXHR | HD3SS212ZXHT |
|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active |
| Applications | DisplayPort | DisplayPort | DisplayPort | DisplayPort | DisplayPort |
| Multiplexer/Demultiplexer Circuit | 2:1 | 2:1 | 2:1 | 2:1 | 2:1 |
| Switch Circuit | SPDT | SPDT | SPDT | SPDT | DPST |
| Number of Channels | 1 | 1 | 2 | 1 | 1 |
| On-State Resistance (Max) | 12Ohm | 14Ohm | 12Ohm | 12Ohm | 12Ohm |
| Voltage - Supply, Single (V+) | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V |
| Voltage - Supply, Dual (V±) | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V |
| -3db Bandwidth | 5.4GHz | 7GHz | 8GHz | 5.4GHz | 5.4GHz |
| Features | - | - | Differential Compatibility | - | - |
| Operating Temperature | -40°C ~ 85°C | 0°C ~ 70°C | 0°C ~ 70°C | -40°C ~ 105°C | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 50-VFBGA | 50-VFBGA | 50-VFBGA | 50-VFBGA | 48-VFBGA |
| Supplier Device Package | 50-NFBGA (5x5) | 50-NFBGA (5x5) | 50-NFBGA (5x5) | 50-NFBGA (5x5) | 48-NFBGA (5x5) |
