Please send RFQ , we will respond immediately.
| Part Number | F28M36P53C2ZWTT | F28M36P63C2ZWTT | F28M36H53C2ZWTT | F28M36P53C2ZWTQ | F28M36P53C2ZWTS |
|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Obsolete | Obsolete | Active |
| Core Processor | C28x/ARM® Cortex®-M3 | C28x/ARM® Cortex®-M3 | C28x/ARM® Cortex®-M3 | C28x/ARM® Cortex®-M3 | C28x/ARM® Cortex®-M3 |
| Core Size | 32-Bit Dual-Core | 32-Bit Dual-Core | 32-Bit Dual-Core | 32-Bit Dual-Core | 32-Bit Dual-Core |
| Speed | 125MHz/150MHz | 125MHz/150MHz | 100MHz/150MHz | 125MHz/150MHz | 125MHz/150MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I²C, IrDA, McBSP, SCI, SPI, SSI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, IrDA, McBSP, SCI, SPI, SSI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, IrDA, McBSP, SCI, SPI, SSI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, IrDA, McBSP, SCI, SPI, SSI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, IrDA, McBSP, SCI, SPI, SSI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT | Brown-out Detect/Reset, DMA, POR, PWM, WDT | Brown-out Detect/Reset, DMA, POR, PWM, WDT | Brown-out Detect/Reset, DMA, POR, PWM, WDT | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 142 | 142 | 142 | 142 | 142 |
| Program Memory Size | 512KB/512KB | 512KB/1MB | 512KB/512KB | 512KB/512KB | 512KB/512KB |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - |
| RAM Size | 232KB | 232KB | 232KB | 232KB | 232KB |
| Voltage - Supply (Vcc/Vdd) | 1.14V ~ 3.63V | 1.14V ~ 3.46V | 1.14V ~ 3.63V | 1.14V ~ 3.63V | 1.14V ~ 3.63V |
| Data Converters | A/D 24x12b | A/D 24x12b | A/D 24x12b | A/D 24x12b | A/D 24x12b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 105°C (TJ) | -40°C ~ 105°C (TJ) | -40°C ~ 105°C (TJ) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

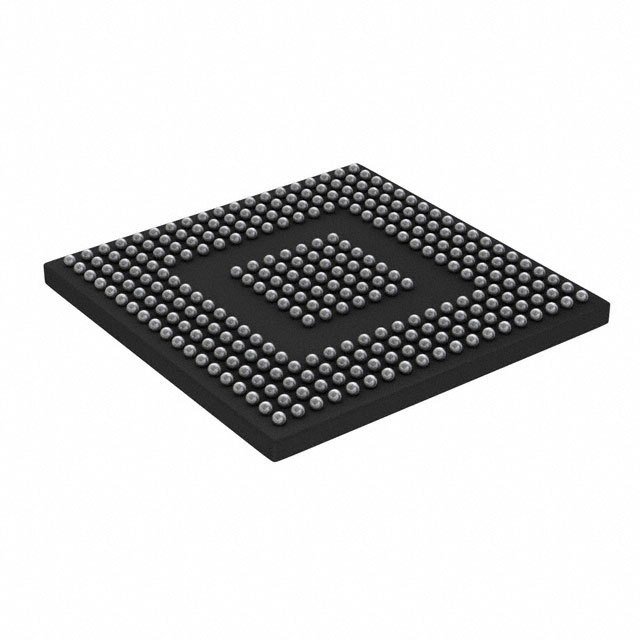

| Package / Case | 289-LFBGA | 289-LFBGA | 289-LFBGA | 289-LFBGA | 289-LFBGA |
| Supplier Device Package | 289-NFBGA (16x16) | 289-NFBGA (16x16) | 289-NFBGA (16x16) | 289-NFBGA (16x16) | 289-NFBGA (16x16) |
