Please send RFQ , we will respond immediately.

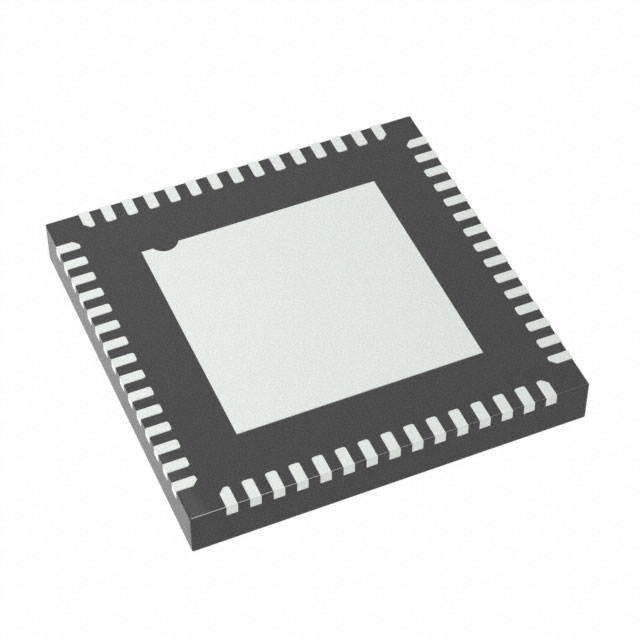

| Part Number | DS92LV2422SQX/NOPB | DS92LV0422SQX/NOPB | DS92LV2412SQX/NOPB | DS92LV2421SQX/NOPB | DS92LV2422SQ/NOPB | DS92LV2422SQE/NOPB |
|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active | Active |
| Function | Deserializer | Deserializer | Deserializer | Serializer | Deserializer | Deserializer |
| Data Rate | 2.1Gbps | 2.1Gbps | 1.2Gbps | 2.1Gbps | 2.1Gbps | 2.1Gbps |
| Input Type | Channel Link II (CML) | CML | Channel Link II (CML) | Channel Link II (LVCMOS) | Channel Link II (CML) | Channel Link II (CML) |
| Output Type | Channel Link II (LVCMOS) | LVDS | Channel Link II (LVCMOS) | Channel Link II (CML) | Channel Link II (LVCMOS) | Channel Link II (LVCMOS) |
| Number of Inputs | 1 | 1 | 1 | 24 | 1 | 1 |
| Number of Outputs | 24 | 5 | 24 | 1 | 24 | 24 |
| Voltage - Supply | 1.71V ~ 1.89V, 3V ~ 3.6V | 1.71V ~ 1.89V, 3V ~ 3.6V | 1.71V ~ 1.89V, 3V ~ 3.6V | 1.71V ~ 1.89V, 3V ~ 3.6V | 1.71V ~ 1.89V, 3V ~ 3.6V | 1.71V ~ 1.89V, 3V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 60-WFQFN Exposed Pad | 48-WFQFN Exposed Pad | 60-WFQFN Exposed Pad | 48-WFQFN Exposed Pad | 60-WFQFN Exposed Pad | 60-WFQFN Exposed Pad |
| Supplier Device Package | 60-WQFN (9x9) | 48-WQFN (7x7) | 60-WQFN (9x9) | 48-WQFN (7x7) | 60-WQFN (9x9) | 60-WQFN (9x9) |
