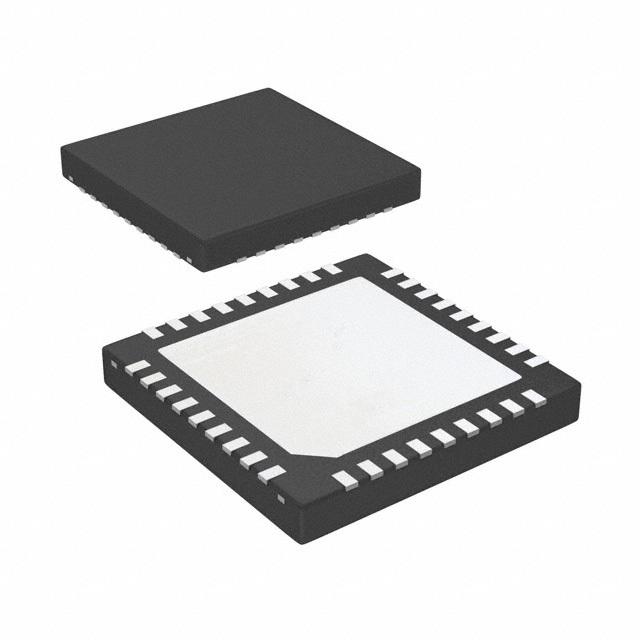

| Part Number | DS42MB100TSQ/NOPB | DS42MB200TSQ/NOPB | DS42MB100TSQE/NOPB |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Obsolete |
| Type | Buffer, Multiplexer | Buffer, Multiplexer | Buffer, Multiplexer |
| Applications | - | - | - |
| Input | CML | CML | CML |
| Output | CML | CML | CML |
| Data Rate (Max) | 4.25Gbps | 4.25Gbps | 4.25Gbps |
| Number of Channels | 1 x 1:2, 2:1 | 2 x 1:2, 2:1 | 1 x 1:2, 2:1 |
| Delay Time | 1.0ns | 500ps | 1.0ns |
| Signal Conditioning | Input Equalization, Output Pre-Emphasis | Input Equalization, Output Pre-Emphasis | Input Equalization, Output Pre-Emphasis |
| Capacitance - Input | - | - | - |
| Voltage - Supply | 3.135V ~ 3.465V | 3.135V ~ 3.465V | 3.135V ~ 3.465V |
| Current - Supply | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 36-WFQFN Exposed Pad | 48-WFQFN Exposed Pad | 36-WFQFN Exposed Pad |
| Supplier Device Package | 36-WQFN (6x6) | 48-WQFN (7x7) | 36-WQFN (6x6) |
