DS15BR401TSQX/NOPB
  • Share:

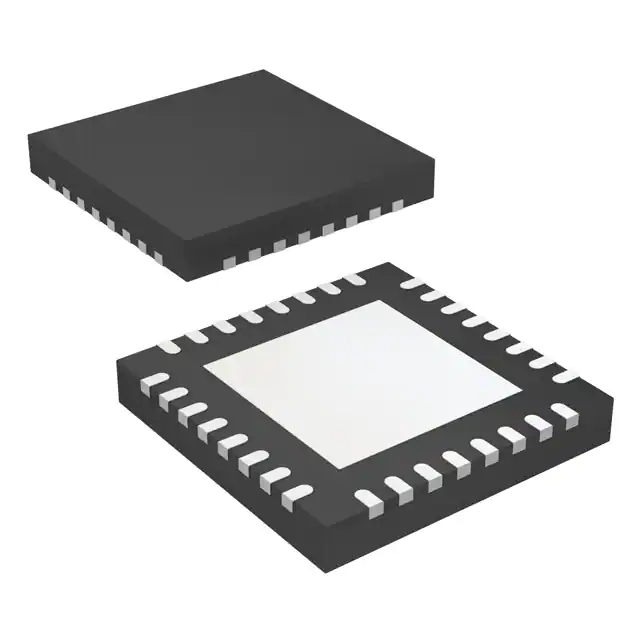

Texas Instruments DS15BR401TSQX/NOPB

Manufacturer No:
DS15BR401TSQX/NOPB
Manufacturer:
Texas Instruments
Package:
Tape & Reel (TR)
Datasheet:
DS15BR401TSQX/NOPB Datasheet
ECAD Model:
-
Description:
IC REDRIVER LVDS 4CH 32WQFN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Buffer, ReDriver
Applications:LVDS
Input:CML, LVDS, LVPECL
Output:LVDS
Data Rate (Max):2Gbps
Number of Channels:4
Delay Time:1.0ns
Signal Conditioning:Output Pre-Emphasis
Capacitance - Input:3 pF
Voltage - Supply:3V ~ 3.6V
Current - Supply:175mA
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Package / Case:32-WFQFN Exposed Pad
Supplier Device Package:32-WQFN (5x5)
0 Remaining View Similar

In Stock

-
566

Please send RFQ , we will respond immediately.

Similar Products

Part Number DS15BR401TSQX/NOPB DS15BR400TSQX/NOPB   DS15BR401TSQ/NOPB
Manufacturer Texas Instruments Texas Instruments Texas Instruments
Product Status Obsolete Obsolete Active
Type Buffer, ReDriver Buffer, ReDriver Buffer, ReDriver
Applications LVDS LVDS LVDS
Input CML, LVDS, LVPECL CML, LVDS, LVPECL CML, LVDS, LVPECL
Output LVDS LVDS LVDS
Data Rate (Max) 2Gbps 2Gbps 2Gbps
Number of Channels 4 4 4
Delay Time 1.0ns 1.0ns 1.0ns
Signal Conditioning Output Pre-Emphasis Output Pre-Emphasis Output Pre-Emphasis
Capacitance - Input 3 pF 3 pF 3 pF
Voltage - Supply 3V ~ 3.6V 3V ~ 3.6V 3V ~ 3.6V
Current - Supply 175mA 175mA 175mA
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C
Mounting Type Surface Mount Surface Mount Surface Mount
Package / Case 32-WFQFN Exposed Pad 32-WFQFN Exposed Pad 32-WFQFN Exposed Pad
Supplier Device Package 32-WQFN (5x5) 32-WQFN (5x5) 32-WQFN (5x5)
