| Part Number | DS15BR400TSQ/NOPB | DS15BR401TSQ/NOPB | DS15BR400TSQX/NOPB |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Obsolete |
| Type | Buffer, ReDriver | Buffer, ReDriver | Buffer, ReDriver |
| Applications | LVDS | LVDS | LVDS |
| Input | CML, LVDS, LVPECL | CML, LVDS, LVPECL | CML, LVDS, LVPECL |
| Output | LVDS | LVDS | LVDS |
| Data Rate (Max) | 2Gbps | 2Gbps | 2Gbps |
| Number of Channels | 4 | 4 | 4 |
| Delay Time | 1.0ns | 1.0ns | 1.0ns |
| Signal Conditioning | Output Pre-Emphasis | Output Pre-Emphasis | Output Pre-Emphasis |
| Capacitance - Input | 3 pF | 3 pF | 3 pF |
| Voltage - Supply | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V |
| Current - Supply | 175mA | 175mA | 175mA |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

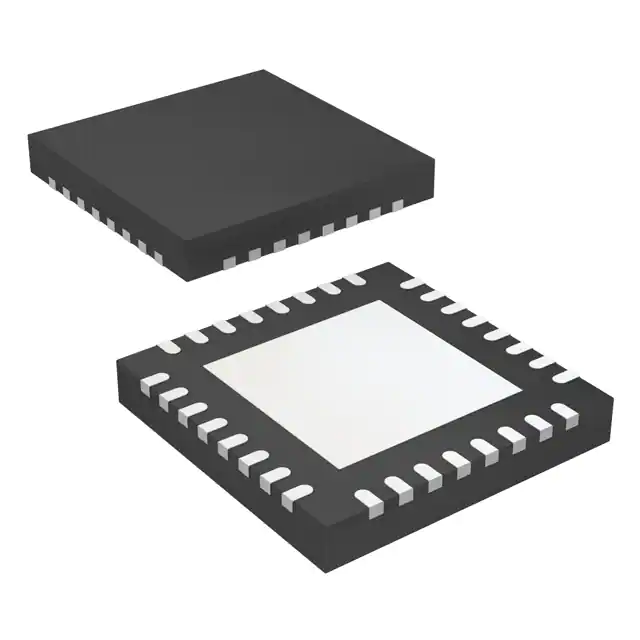

| Package / Case | 32-WFQFN Exposed Pad | 32-WFQFN Exposed Pad | 32-WFQFN Exposed Pad |
| Supplier Device Package | 32-WQFN (5x5) | 32-WQFN (5x5) | 32-WQFN (5x5) |
