| Part Number | DS125BR401SQ/NOPB | DS125BR401SQE/NOPB |
|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments |
| Product Status | Active | Active |
| Type | Buffer, ReDriver | Buffer, ReDriver |
| Applications | PCIe | PCIe, SAS, SATA |
| Input | CML | CML |
| Output | CML | CML |
| Data Rate (Max) | 12.5Gbps | 12Gbps |
| Number of Channels | 8 | 4 |
| Delay Time | 200ps | 200ps |
| Signal Conditioning | Input Equalization, Output De-Emphasis | Input Equalization, Output De-Emphasis |
| Capacitance - Input | 10 pF | 10 pF |
| Voltage - Supply | 2.375V ~ 3.6V | 2.375V ~ 3.6V |
| Current - Supply | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount |

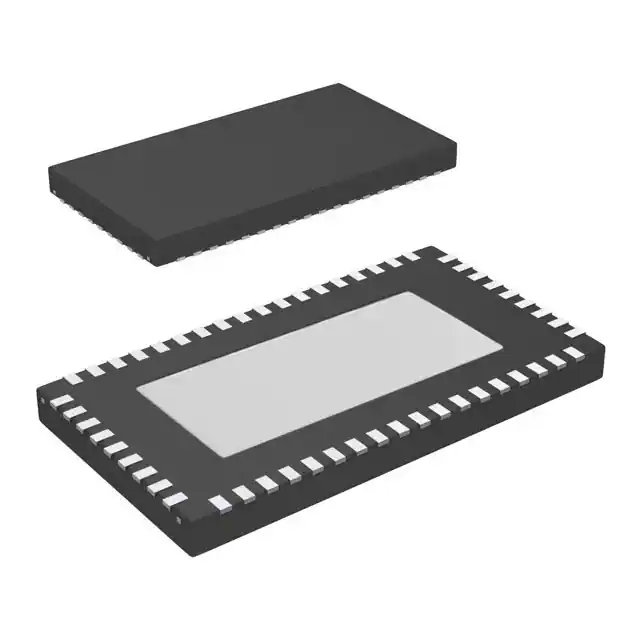

| Package / Case | 54-WFQFN Exposed Pad | 54-WFQFN Exposed Pad |
| Supplier Device Package | 54-WQFN (10x5.5) | 54-WQFN (10x5.5) |
