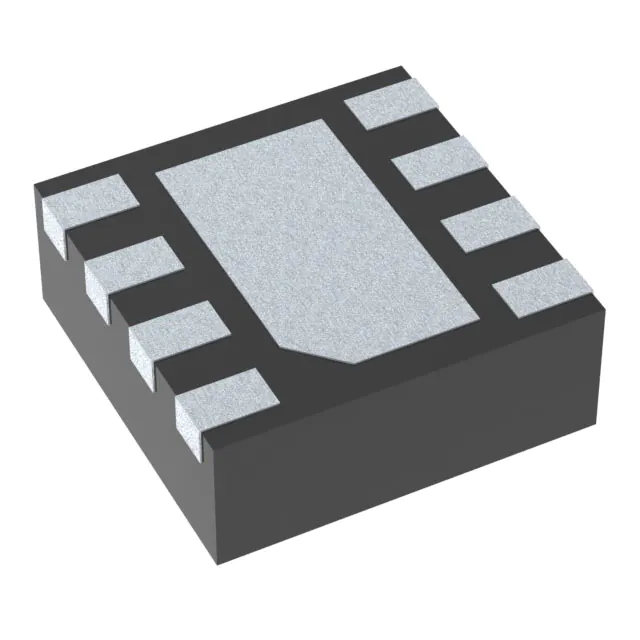

| Part Number | DRV8837DSGT | DRV8838DSGT | DRV8837CDSGT | DRV8837DSGR |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active |
| Motor Type - Stepper | - | - | - | - |
| Motor Type - AC, DC | Brushed DC | Brushed DC | Brushed DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (2) | Half Bridge (2) | Half Bridge (2) | Half Bridge (2) |
| Interface | PWM | On/Off | PWM | PWM |
| Technology | NMOS | NMOS | NMOS | NMOS |
| Step Resolution | - | - | - | - |
| Applications | DC Motors, General Purpose, Solenoids | DC Motors, General Purpose, Solenoids | DC Motors, General Purpose, Solenoids | DC Motors, General Purpose, Solenoids |
| Current - Output | 1.8A | 1.8A | 1A | 1.8A |
| Voltage - Supply | 1.8V ~ 7V | 1.8V ~ 7V | 1.8V ~ 7V | 1.8V ~ 7V |
| Voltage - Load | 0V ~ 11V | 0V ~ 11V | 0V ~ 11V | 0V ~ 11V |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 150°C (TJ) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-WSON (2x2) | 8-WSON (2x2) | 8-WSON (2x2) | 8-WSON (2x2) |
