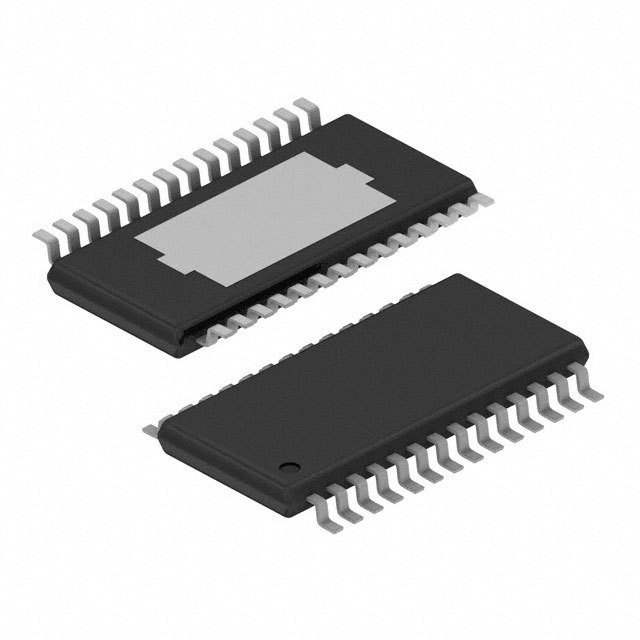

| Part Number | DRV8811PWPR | DRV8816PWPR | DRV8818PWPR | DRV8813PWPR | DRV8841PWPR | DRV8812PWPR | DRV8814PWPR | DRV8801PWPR | DRV8811PWP |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Motor Type - Stepper | Bipolar | - | Bipolar | Bipolar | Bipolar | Bipolar | - | Bipolar | Bipolar |
| Motor Type - AC, DC | - | Brushed DC | - | Brushed DC | Brushed DC | Brushed DC | Brushed DC | Brushed DC | - |
| Function | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) | Half Bridge (2) | Half Bridge (4) | Half Bridge (4) | Half Bridge (4) | Half Bridge (4) | Half Bridge (4) | Half Bridge (2) | Half Bridge (4) |
| Interface | Logic | Parallel | Logic | Parallel | Parallel | Parallel | Parallel | Parallel | Logic |
| Technology | Power MOSFET | DMOS | Power MOSFET | Power MOSFET | Power MOSFET | Power MOSFET | Power MOSFET | DMOS | Power MOSFET |
| Step Resolution | 1, 1/2, 1/4, 1/8 | - | 1, 1/2, 1/4, 1/8 | - | - | - | - | - | 1, 1/2, 1/4, 1/8 |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Current - Output | 1.9A | 2.8A | 2.5A | 1.75A | 1.75A | 1.6A | 1.75A | 2.8A | 1.9A |
| Voltage - Supply | 3V ~ 5.5V | 8V ~ 38V | 3V ~ 5.5V | 8.2V ~ 45V | 8.2V ~ 45V | 8.2V ~ 45V | 8V ~ 45V | 8V ~ 38V | 3V ~ 5.5V |
| Voltage - Load | 8V ~ 38V | 8V ~ 38V | 8V ~ 35V | 8.2V ~ 45V | 8.2V ~ 45V | 8.2V ~ 45V | 8V ~ 45V | 8V ~ 38V | 8V ~ 38V |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 190°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 28-PowerTSSOP (0.173", 4.40mm Width) | 16-PowerTSSOP (0.173", 4.40mm Width) | 28-PowerTSSOP (0.173", 4.40mm Width) | 28-PowerTSSOP (0.173", 4.40mm Width) | 28-PowerTSSOP (0.173", 4.40mm Width) | 28-PowerTSSOP (0.173", 4.40mm Width) | 28-PowerTSSOP (0.173", 4.40mm Width) | 16-PowerTSSOP (0.173", 4.40mm Width) | 28-PowerTSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 28-HTSSOP | 16-HTSSOP | 28-HTSSOP | 28-HTSSOP | 28-HTSSOP | 28-HTSSOP | 28-HTSSOP | 16-HTSSOP | 28-HTSSOP |
