Please send RFQ , we will respond immediately.

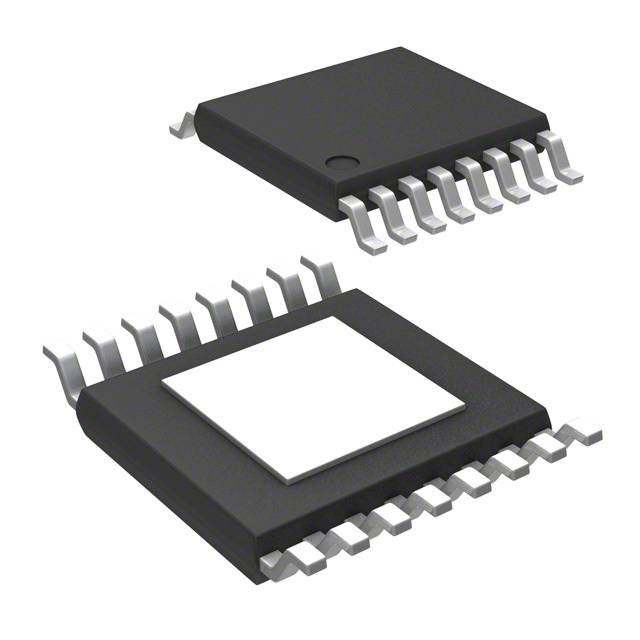

| Part Number | DRV8804PWP | DRV8844PWP | DRV8824PWP | DRV8805PWP | DRV8834PWP | DRV8804PWPR | DRV8806PWP | DRV8814PWP | DRV8800PWP | DRV8801PWP | DRV8802PWP | DRV8803PWP |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Motor Type - Stepper | Unipolar | Bipolar | Bipolar | Unipolar | Bipolar | Unipolar | Unipolar | - | Bipolar | Bipolar | - | Unipolar |
| Motor Type - AC, DC | Brushed DC | Brushed DC | - | Brushed DC | Brushed DC | Brushed DC | Brushed DC | Brushed DC | Brushed DC | Brushed DC | Brushed DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Low Side (4) | Half Bridge (4) | Half Bridge (4) | Low Side (4) | Half Bridge (4) | Low Side (4) | Low Side (4) | Half Bridge (4) | Half Bridge (2) | Half Bridge (2) | Half Bridge (4) | Low Side (4) |
| Interface | SPI | Parallel | Logic | Logic | Logic | SPI | SPI | Parallel | Parallel | Parallel | Parallel | Parallel |
| Technology | Power MOSFET | Power MOSFET | Power MOSFET | Power MOSFET | Power MOSFET | Power MOSFET | Power MOSFET | Power MOSFET | DMOS | DMOS | Power MOSFET | Power MOSFET |
| Step Resolution | - | - | 1 ~ 1/32 | 1, 1/2 | 1 ~ 1/32 | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Current - Output | 1A | 1.75A | 1.6A | 1A | 1.5A | 1A | 2A | 1.75A | 2.8A | 2.8A | 1.1A | 1A |
| Voltage - Supply | 8.2V ~ 60V | 8V ~ 60V | 8.2V ~ 45V | 8.2V ~ 60V | 2.5V ~ 10.8V | 8.2V ~ 60V | 8.2V ~ 40V | 8V ~ 45V | 8V ~ 38V | 8V ~ 38V | 8.2V ~ 45V | 8.2V ~ 60V |
| Voltage - Load | 8.2V ~ 60V | 8V ~ 60V | 8.2V ~ 45V | 8.2V ~ 60V | 2.5V ~ 10.8V | 8.2V ~ 60V | 8.2V ~ 40V | 8V ~ 45V | 8V ~ 38V | 8V ~ 38V | 8.2V ~ 45V | 8.2V ~ 60V |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-PowerTSSOP (0.173", 4.40mm Width) | 28-PowerTSSOP (0.173", 4.40mm Width) | 28-PowerTSSOP (0.173", 4.40mm Width) | 16-PowerTSSOP (0.173", 4.40mm Width) | 24-TSSOP (0.173", 4.40mm Width) Exposed Pad | 16-PowerTSSOP (0.173", 4.40mm Width) | 16-PowerTSSOP (0.173", 4.40mm Width) | 28-PowerTSSOP (0.173", 4.40mm Width) | 16-PowerTSSOP (0.173", 4.40mm Width) | 16-PowerTSSOP (0.173", 4.40mm Width) | 28-PowerTSSOP (0.173", 4.40mm Width) | 16-PowerTSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-HTSSOP | 28-HTSSOP | 28-HTSSOP | 16-HTSSOP | 24-HTSSOP | 16-HTSSOP | 16-HTSSOP | 28-HTSSOP | 16-HTSSOP | 16-HTSSOP | 28-HTSSOP | 16-HTSSOP |
