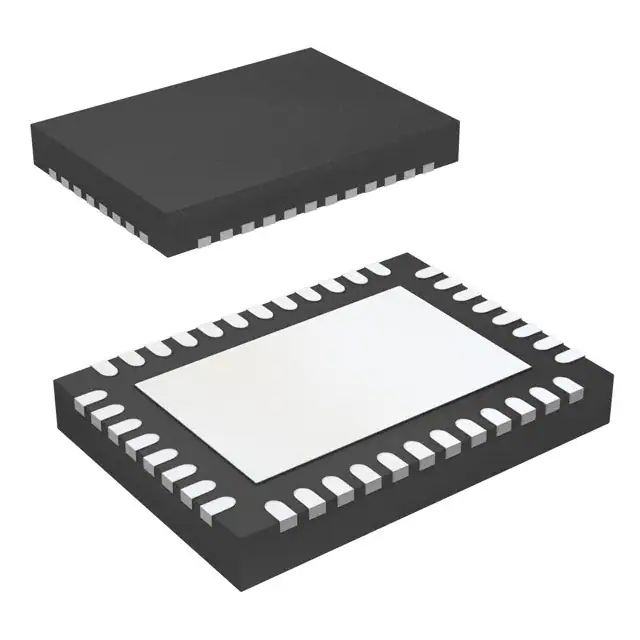

| Part Number | DRV8714HQRHARQ1 | DRV8714SQRHARQ1 |
|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments |
| Product Status | Active | Active |
| Output Configuration | Half Bridge | Half Bridge |
| Applications | DC Motors, General Purpose | DC Motors, General Purpose |
| Interface | Analog, Logic, PWM, SPI | Analog, Logic, PWM, SPI |
| Load Type | Inductive, Capacitive, Resistive | Inductive, Capacitive, Resistive |
| Technology | Power MOSFET | Power MOSFET |
| Rds On (Typ) | 4mOhm | 4mOhm |
| Current - Output / Channel | 62mA | 62mA |
| Current - Peak Output | 62mA | 62mA |
| Voltage - Supply | 4.9V ~ 37V | 4.9V ~ 37V |
| Voltage - Load | 4.9V ~ 37V | 4.9V ~ 37V |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Features | Charge Pump | Charge Pump |
| Fault Protection | Current Limiting, Short Circuit, Shoot-Through | Current Limiting, Short Circuit, Shoot-Through |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 40-VFQFN Exposed Pad | 40-VFQFN Exposed Pad |
| Supplier Device Package | 40-VQFN (6x6) | 40-VQFN (6x6) |
