| Part Number | DRV8353HRTAR | DRV8353HRTAT | DRV8353SRTAR | DRV8323HRTAR | DRV8353FHRTAR |
|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active |
| Motor Type - Stepper | Multiphase | Multiphase | Multiphase | Multiphase | Multiphase |
| Motor Type - AC, DC | Brushless DC (BLDC) | Brushless DC (BLDC) | Brushless DC (BLDC) | Brushless DC (BLDC) | Brushless DC (BLDC) |
| Function | Controller - Commutation, Direction Management | Controller - Commutation, Direction Management | Controller - Commutation, Direction Management | Controller - Commutation, Direction Management | Controller - Commutation, Direction Management |
| Output Configuration | Half Bridge (3) | Half Bridge (3) | Half Bridge (3) | Half Bridge (3) | Half Bridge (3) |
| Interface | PWM, SPI | SPI | PWM, SPI | Hardware | PWM, SPI |
| Technology | Power MOSFET | Power MOSFET | Power MOSFET | Power MOSFET | Power MOSFET |
| Step Resolution | - | - | - | - | - |
| Applications | Brushless DC (BLDC) | Brushless DC (BLDC) | Brushless DC (BLDC) | Brushless DC (BLDC) | Brushless DC (BLDC) |
| Current - Output | 5mA | 25mA | 5mA | 5mA | 25mA |
| Voltage - Supply | 6V ~ 95V | 6V ~ 95V | 6V ~ 95V | 6V ~ 60V | 7V ~ 100V |
| Voltage - Load | 9V ~ 75V | 9V ~ 75V | 9V ~ 75V | - | 9V ~ 75V |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

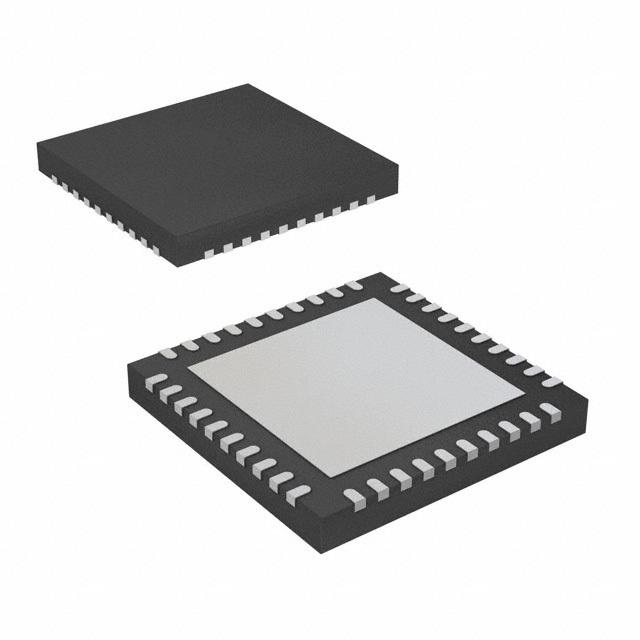

| Package / Case | 40-WFQFN Exposed Pad | 40-WFQFN Exposed Pad | 40-WFQFN Exposed Pad | 40-WFQFN Exposed Pad | 40-WFQFN Exposed Pad |
| Supplier Device Package | 40-WQFN (6x6) | 40-WQFN (6x6) | 40-WQFN (6x6) | 40-WQFN (6x6) | 40-WQFN (6x6) |
