| Part Number | DRV8306HRSMR | DRV8306HRSMT |
|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments |
| Product Status | Active | Active |
| Motor Type - Stepper | Multiphase | Multiphase |
| Motor Type - AC, DC | Brushless DC (BLDC) | Brushless DC (BLDC) |
| Function | Controller - Commutation, Direction Management | Controller - Commutation, Direction Management |
| Output Configuration | Half Bridge (3) | Half Bridge (3) |
| Interface | PWM | PWM |
| Technology | Power MOSFET | Power MOSFET |
| Step Resolution | - | - |
| Applications | General Purpose | General Purpose |
| Current - Output | 300mA | 300mA |
| Voltage - Supply | 6V ~ 38V | 6V ~ 38V |
| Voltage - Load | 0V ~ 5.5V | 0V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |

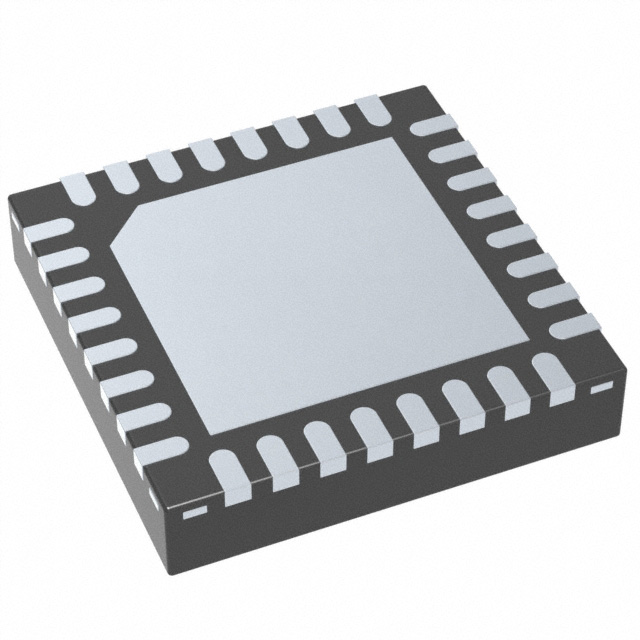

| Package / Case | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-VQFN (4x4) | 32-VQFN (4x4) |
