Please send RFQ , we will respond immediately.

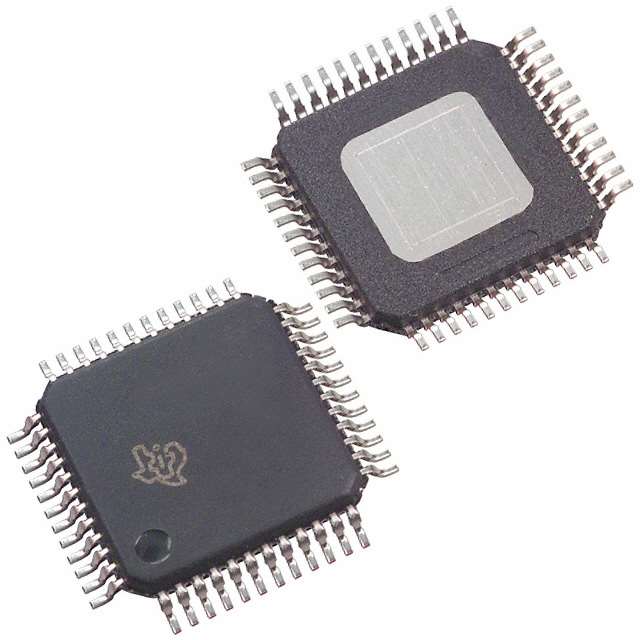

| Part Number | DRV8305NPHP | DRV8305NPHPR | DRV83053PHP | DRV83055PHP |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active |
| Motor Type - Stepper | Multiphase | Multiphase | Multiphase | Multiphase |
| Motor Type - AC, DC | - | - | - | - |
| Function | Controller - Commutation, Direction Management | Controller - Commutation, Direction Management | Controller - Commutation, Direction Management | Controller - Commutation, Direction Management |
| Output Configuration | Pre-Driver - Half Bridge (3) | Pre-Driver - Half Bridge (3) | Pre-Driver - Half Bridge (3) | Pre-Driver - Half Bridge (3) |
| Interface | PWM, SPI | PWM, SPI | PWM, SPI | PWM, SPI |
| Technology | Power MOSFET | Power MOSFET | Power MOSFET | Power MOSFET |
| Step Resolution | - | - | - | - |
| Applications | Three-Phase BLDC, PMSM Motors | Three-Phase BLDC, PMSM Motors | Three-Phase BLDC, PMSM Motors | Three-Phase BLDC, PMSM Motors |
| Current - Output | - | - | - | - |
| Voltage - Supply | 4.4V ~ 45V | 4.4V ~ 45V | 4.4V ~ 45V | 4.4V ~ 45V |
| Voltage - Load | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 48-PowerTQFP | 48-PowerTQFP | 48-PowerTQFP | 48-PowerTQFP |
| Supplier Device Package | 48-HTQFP (7x7) | 48-HTQFP (7x7) | 48-HTQFP (7x7) | 48-HTQFP (7x7) |
