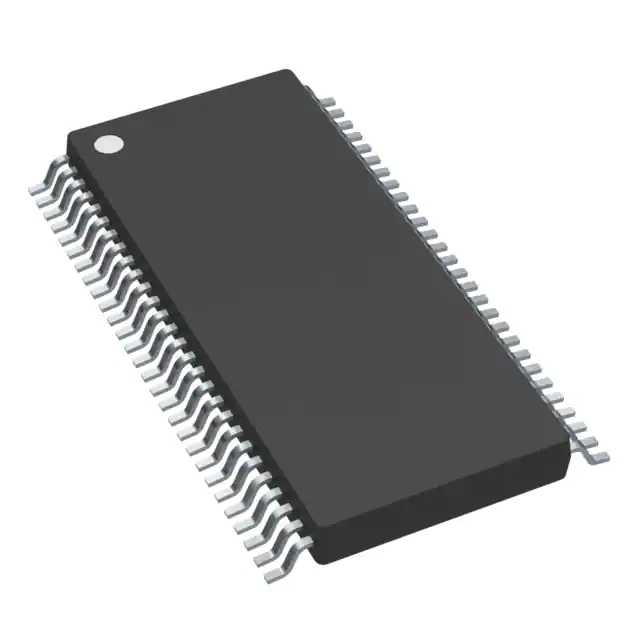

| Part Number | DRV8301QDCARQ1 | DRV8301QDCAQ1 |
|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments |
| Product Status | Not For New Designs | Not For New Designs |
| Motor Type - Stepper | - | - |
| Motor Type - AC, DC | Brushless DC (BLDC) | Brushless DC (BLDC) |
| Function | Controller - Commutation, Direction Management | Controller - Commutation, Direction Management |
| Output Configuration | Pre-Driver - Half Bridge (3) | Pre-Driver - Half Bridge (3) |
| Interface | SPI | SPI |
| Technology | Power MOSFET | Power MOSFET |
| Step Resolution | - | - |
| Applications | Automotive | Automotive |
| Current - Output | - | - |
| Voltage - Supply | 6V ~ 60V | 6V ~ 60V |
| Voltage - Load | - | - |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 56-TFSOP (0.240", 6.10mm Width) Exposed Pad | 56-TFSOP (0.240", 6.10mm Width) Exposed Pad |
| Supplier Device Package | 56-HTSSOP | 56-HTSSOP |
