Please send RFQ , we will respond immediately.
| Part Number | DRV3203EPHPQ1 | DRV3204EPHPQ1 | DRV3203QPHPQ1 | DRV3203EPHPRQ1 |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Motor Type - Stepper | - | - | - | - |
| Motor Type - AC, DC | Brushless DC (BLDC) | Brushless DC (BLDC) | Brushless DC (BLDC) | Brushless DC (BLDC) |
| Function | Controller - Commutation, Direction Management | Controller - Commutation, Direction Management | Controller - Commutation, Direction Management | Controller - Commutation, Direction Management |
| Output Configuration | Pre-Driver - Half Bridge (3) | Pre-Driver - Half Bridge (3) | Pre-Driver - Half Bridge (3) | Pre-Driver - Half Bridge (3) |
| Interface | SPI | SPI | SPI | SPI |
| Technology | NMOS | - | NMOS | NMOS |
| Step Resolution | - | - | - | - |
| Applications | Automotive | Automotive | Automotive | Automotive |
| Current - Output | - | - | - | - |
| Voltage - Supply | 5.3V ~ 26.5V | 5.3V ~ 26.5V | 5.3V ~ 28.5V | 5.3V ~ 26.5V |
| Voltage - Load | - | - | - | - |
| Operating Temperature | -40°C ~ 150°C (TA) | -40°C ~ 150°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 150°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

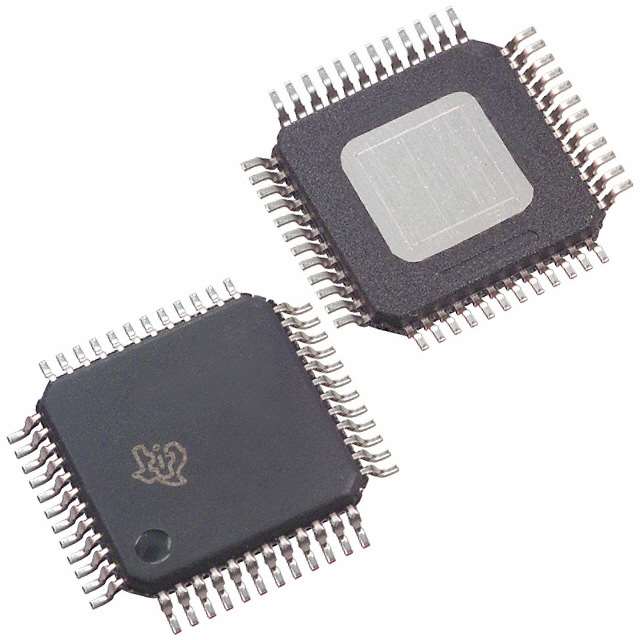

| Package / Case | 48-PowerTQFP | 48-PowerTQFP | 48-PowerTQFP | 48-PowerTQFP |
| Supplier Device Package | 48-HTQFP (7x7) | 48-HTQFP (7x7) | 48-HTQFP (7x7) | 48-HTQFP (7x7) |
