DAC8831IRGYT
  • Share:

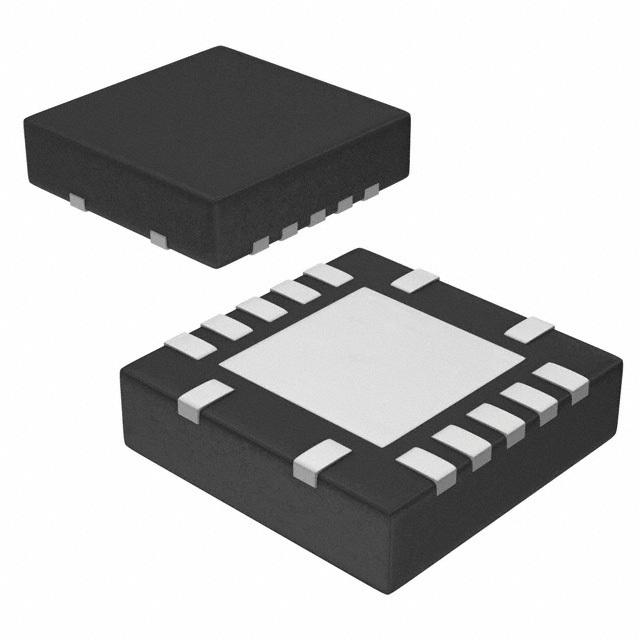

Texas Instruments DAC8831IRGYT

Manufacturer No:
DAC8831IRGYT
Manufacturer:
Texas Instruments
Package:
Tape & Reel (TR)
Datasheet:
DAC8831IRGYT Datasheet
ECAD Model:
-
Description:
IC DAC 16BIT V-OUT 14VQFN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Bits:16
Number of D/A Converters:1
Settling Time:1µs (Typ)
Output Type:Voltage - Unbuffered
Differential Output:No
Data Interface:SPI
Reference Type:External
Voltage - Supply, Analog:2.7V ~ 5.5V
Voltage - Supply, Digital:2.7V ~ 5.5V
INL/DNL (LSB):±0.5, ±0.5
Architecture:R-2R
Operating Temperature:-40°C ~ 85°C
Package / Case:14-VFQFN Exposed Pad
Supplier Device Package:14-VQFN (3.5x3.5)
Mounting Type:Surface Mount
0 Remaining View Similar

In Stock

-
462

Please send RFQ , we will respond immediately.

Similar Products

Part Number DAC8831IRGYT DAC8832IRGYT   DAC8831IBRGYT   DAC8831ICRGYT   DAC8831IRGYR
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Product Status Obsolete Active Obsolete Active Obsolete
Number of Bits 16 16 16 16 16
Number of D/A Converters 1 1 1 1 1
Settling Time 1µs (Typ) 1µs (Typ) 1µs (Typ) 1µs (Typ) 1µs (Typ)
Output Type Voltage - Unbuffered Voltage - Unbuffered Voltage - Unbuffered Voltage - Unbuffered Voltage - Unbuffered
Differential Output No No No No No
Data Interface SPI SPI SPI SPI SPI
Reference Type External External External External External
Voltage - Supply, Analog 2.7V ~ 5.5V 2.7V ~ 5.5V 2.7V ~ 5.5V 2.7V ~ 5.5V 2.7V ~ 5.5V
Voltage - Supply, Digital 2.7V ~ 5.5V 2.7V ~ 5.5V 2.7V ~ 5.5V 2.7V ~ 5.5V 2.7V ~ 5.5V
INL/DNL (LSB) ±0.5, ±0.5 ±0.5, ±0.5 ±0.5, ±0.5 ±0.5, ±0.5 ±0.5, ±0.5
Architecture R-2R R-2R R-2R R-2R R-2R
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C
Package / Case 14-VFQFN Exposed Pad 14-VFQFN Exposed Pad 14-VFQFN Exposed Pad 14-VFQFN Exposed Pad 14-VFQFN Exposed Pad
Supplier Device Package 14-VQFN (3.5x3.5) 14-VQFN (3.5x3.5) 14-VQFN (3.5x3.5) 14-VQFN (3.5x3.5) 14-VQFN (3.5x3.5)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
