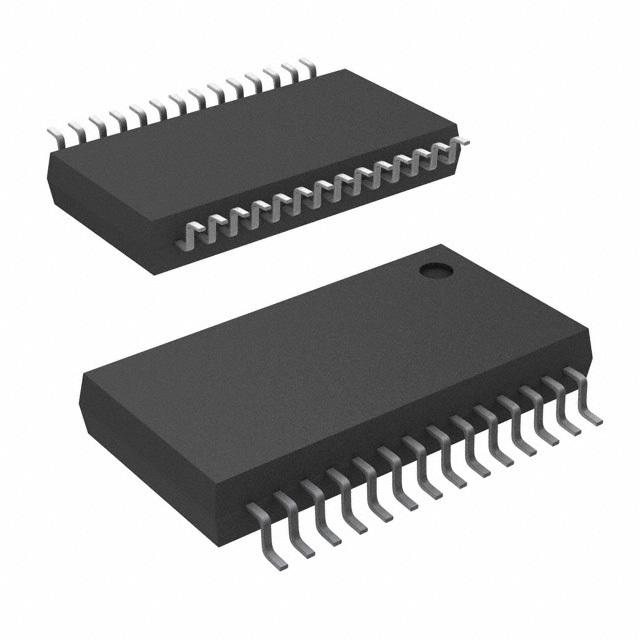

| Part Number | DAC8814ICDBR | DAC8814ICDBT | DAC8814IBDBR |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active |
| Number of Bits | 16 | 16 | 16 |
| Number of D/A Converters | 4 | 4 | 4 |
| Settling Time | 500ns (Typ) | 500ns (Typ) | 500ns (Typ) |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered |
| Differential Output | No | No | No |
| Data Interface | SPI | SPI | SPI |
| Reference Type | External | External | External |
| Voltage - Supply, Analog | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) | ±4 (Max), ±1.5 (Max) |
| Architecture | Multiplying DAC | Multiplying DAC | Multiplying DAC |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) | 28-SSOP (0.209", 5.30mm Width) | 28-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 28-SSOP | 28-SSOP | 28-SSOP |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
