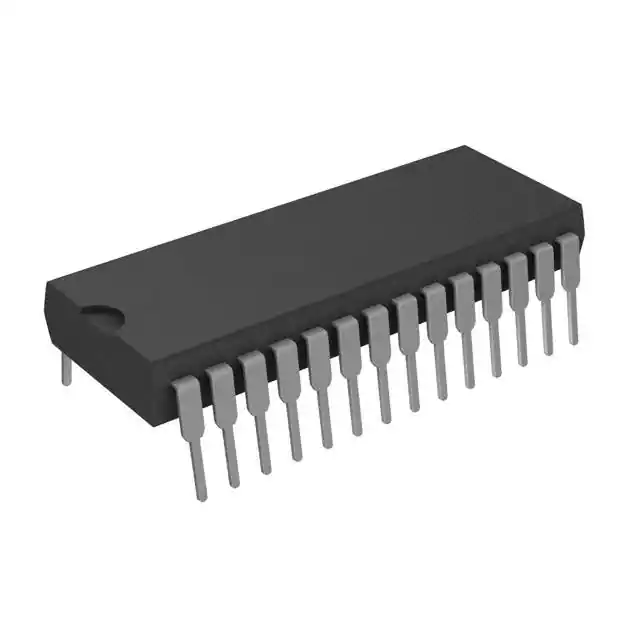

| Part Number | DAC811JP | DAC811JU | DAC811KP | DAC813JP |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Burr Brown | Texas Instruments |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| Number of Bits | 12 | 12 | 12 | 12 |
| Number of D/A Converters | 1 | 1 | 1 | 1 |
| Settling Time | 4µs | 4µs | 4µs | 6µs |
| Output Type | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered |
| Differential Output | No | No | No | No |
| Data Interface | Parallel | Parallel | Parallel | Parallel |
| Reference Type | Internal | Internal | Internal | External, Internal |
| Voltage - Supply, Analog | ±11.4V ~ 16.5V | ±11.4V ~ 16.5V | ±11.4V ~ 16.5V | ±11.4V ~ 16.5V |
| Voltage - Supply, Digital | 5V | 5V | 5V | 11.4V ~ 16.5V |
| INL/DNL (LSB) | ±0.25, ±0.5 | ±0.25, ±0.5 | ±0.125, ±0.25 | ±0.25, ±0.5 |
| Architecture | R-2R | R-2R | R-2R | R-2R |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | -40°C ~ 85°C |
| Package / Case | 28-DIP (0.600", 15.24mm) | 28-SOIC (0.295", 7.50mm Width) | 28-DIP (0.600", 15.24mm) | 28-DIP (0.300", 7.62mm) |
| Supplier Device Package | 28-PDIP | 28-SOIC | 28-PDIP | 28-PDIP |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Through Hole |
