| Part Number | DAC7725N | DAC7725U | DAC7725NB | DAC7724N |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Burr Brown | Texas Instruments |
| Product Status | Obsolete | Active | Active | Active |
| Number of Bits | 12 | 12 | 12 | 12 |
| Number of D/A Converters | 4 | 4 | 4 | 4 |
| Settling Time | 10µs | 10µs | 10µs | 10µs |
| Output Type | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered |
| Differential Output | No | No | No | No |
| Data Interface | Parallel | Parallel | Parallel | Parallel |
| Reference Type | External | External | External | External |
| Voltage - Supply, Analog | ±14.25V ~ 15.75V | ±14.25V ~ 15.75V | ±14.25V ~ 15.75V | ±14.25V ~ 15.75V |
| Voltage - Supply, Digital | 5V | 5V | 5V | 5V |
| INL/DNL (LSB) | ±2 (Max), ±1 (Max) | ±2 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) | ±2 (Max), ±1 (Max) |
| Architecture | R-2R | R-2R | R-2R | R-2R |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |

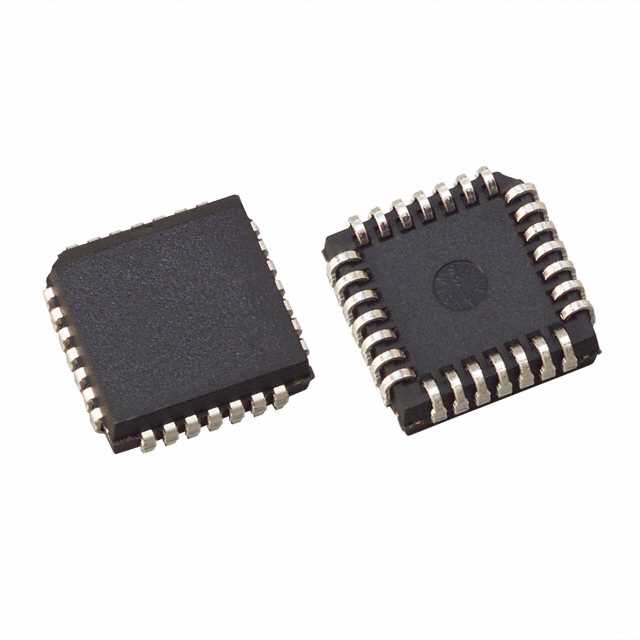

| Package / Case | 28-LCC (J-Lead) | 28-SOIC (0.295", 7.50mm Width) | 28-LCC (J-Lead) | 28-LCC (J-Lead) |
| Supplier Device Package | 28-PLCC (11.51x11.51) | 28-SOIC | 28-PLCC (11.51x11.51) | 28-PLCC (11.51x11.51) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
