DAC7724N/750
  • Share:

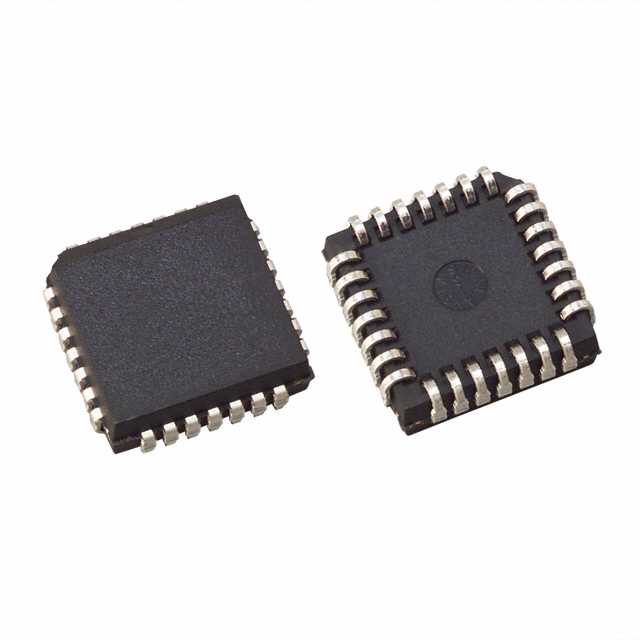

Texas Instruments DAC7724N/750

Manufacturer No:
DAC7724N/750
Manufacturer:
Texas Instruments
Package:
Tape & Reel (TR)
Datasheet:
DAC7724N/750 Datasheet
ECAD Model:
-
Description:
IC DAC 12BIT V-OUT 28PLCC
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Bits:12
Number of D/A Converters:4
Settling Time:10µs
Output Type:Voltage - Buffered
Differential Output:No
Data Interface:Parallel
Reference Type:External
Voltage - Supply, Analog:±14.25V ~ 15.75V
Voltage - Supply, Digital:5V
INL/DNL (LSB):±2 (Max), ±1 (Max)
Architecture:R-2R
Operating Temperature:-40°C ~ 85°C
Package / Case:28-LCC (J-Lead)
Supplier Device Package:28-PLCC (11.51x11.51)
Mounting Type:Surface Mount
0 Remaining View Similar

In Stock

$16.87
16

Please send RFQ , we will respond immediately.

Similar Products

Part Number DAC7724N/750 DAC7724NB/750   DAC7725N/750
Manufacturer Texas Instruments Texas Instruments Texas Instruments
Product Status Obsolete Active Obsolete
Number of Bits 12 12 12
Number of D/A Converters 4 4 4
Settling Time 10µs 10µs 10µs
Output Type Voltage - Buffered Voltage - Buffered Voltage - Buffered
Differential Output No No No
Data Interface Parallel Parallel Parallel
Reference Type External External External
Voltage - Supply, Analog ±14.25V ~ 15.75V ±14.25V ~ 15.75V ±14.25V ~ 15.75V
Voltage - Supply, Digital 5V 5V 5V
INL/DNL (LSB) ±2 (Max), ±1 (Max) ±1 (Max), ±1 (Max) ±2 (Max), ±1 (Max)
Architecture R-2R R-2R R-2R
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C
Package / Case 28-LCC (J-Lead) 28-LCC (J-Lead) 28-LCC (J-Lead)
Supplier Device Package 28-PLCC (11.51x11.51) 28-PLCC (11.51x11.51) 28-PLCC (11.51x11.51)
Mounting Type Surface Mount Surface Mount Surface Mount
