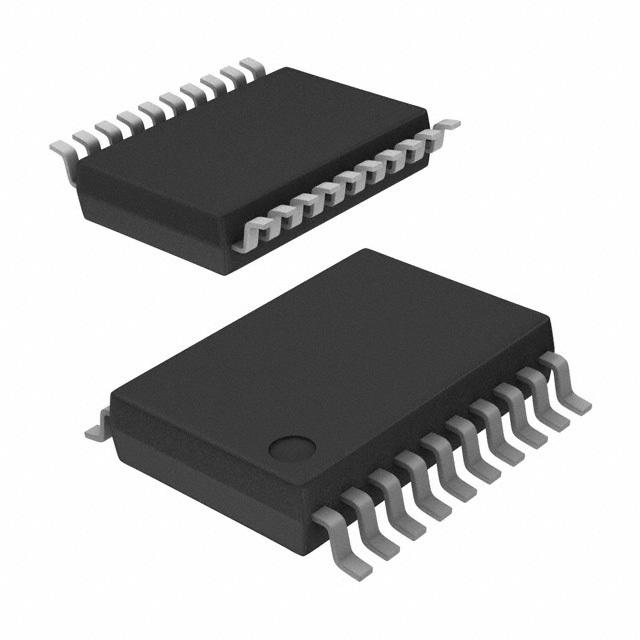

| Part Number | DAC7615E/1K | DAC7615U/1K | DAC7615EB/1K | DAC7616E/1K | DAC7617E/1K | DAC7613E/1K | DAC7614E/1K |
|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Discontinued at Digi-Key | Obsolete | Active | Active |
| Number of Bits | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Number of D/A Converters | 4 | 4 | 4 | 4 | 4 | 1 | 4 |
| Settling Time | 10µs | 10µs | 10µs | 10µs | 10µs | 10µs | 10µs |
| Output Type | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered |
| Differential Output | No | No | No | No | No | No | No |
| Data Interface | SPI | SPI | SPI | SPI | SPI | SPI | SPI |
| Reference Type | External | External | External | External | External | External | External |
| Voltage - Supply, Analog | ±5V | ±5V | ±5V | 3V ~ 3.6V | 3V ~ 3.6V | ±5V | ±5V |
| Voltage - Supply, Digital | 5V | 5V | 5V | 3V ~ 3.6V | 3V ~ 3.6V | 5V | 5V |
| INL/DNL (LSB) | ±2 (Max), ±1 (Max) | ±2 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) | ±2 (Max), ±1 (Max) | ±2 (Max), ±1 (Max) | ±2 (Max), ±1 (Max) | ±2 (Max), ±1 (Max) |
| Architecture | R-2R | R-2R | R-2R | R-2R | R-2R | R-2R | R-2R |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 20-SSOP (0.209", 5.30mm Width) | 16-SOIC (0.295", 7.50mm Width) | 20-SSOP (0.209", 5.30mm Width) | 20-SSOP (0.209", 5.30mm Width) | 20-SSOP (0.209", 5.30mm Width) | 24-SSOP (0.209", 5.30mm Width) | 20-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 20-SSOP | 16-SOIC | 20-SSOP | 20-SSOP | 20-SSOP | 24-SSOP | 20-SSOP |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
