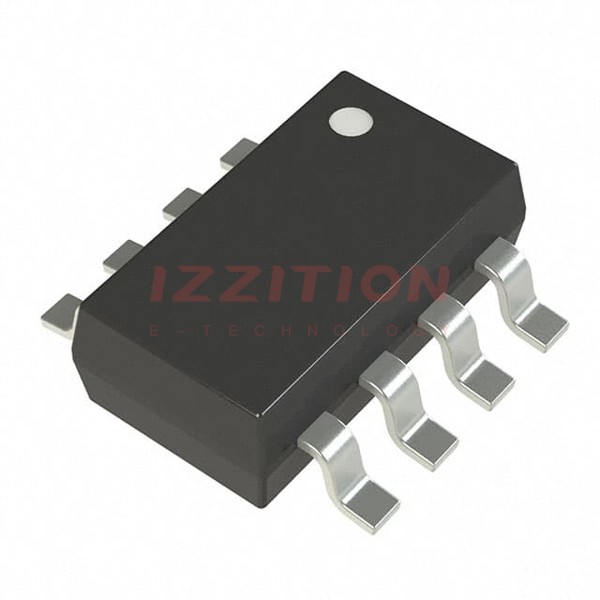

| Part Number | DAC7513N/250G4 | DAC7512N/250G4 | DAC7513E/250G4 |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Number of Bits | 12 | 12 | 12 |
| Number of D/A Converters | 1 | 1 | 1 |
| Settling Time | 10µs | 10µs | 10µs |
| Output Type | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered |
| Differential Output | No | No | No |
| Data Interface | SPI, DSP | SPI, DSP | SPI, DSP |
| Reference Type | External | Supply | External |
| Voltage - Supply, Analog | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| INL/DNL (LSB) | ±8 (Max), ±1 (Max) | ±8 (Max), ±1 (Max) | ±8 (Max), ±1 (Max) |
| Architecture | String DAC | String DAC | String DAC |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Package / Case | SOT-23-8 | SOT-23-6 | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | SOT-23-8 | SOT-23-6 | 8-VSSOP |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
