Please send RFQ , we will respond immediately.
| Part Number | DAC70508MYZFR | DAC70508MYZFT | DAC70508ZYZFR | DAC60508MYZFR |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active |
| Number of Bits | 14 | 14 | 14 | 12 |
| Number of D/A Converters | 8 | 8 | 8 | 8 |
| Settling Time | 5µs (Typ) | 5µs (Typ) | 5µs (Typ) | 5µs (Typ) |
| Output Type | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered |
| Differential Output | No | No | No | No |
| Data Interface | SPI | SPI | SPI | SPI |
| Reference Type | External, Internal | External, Internal | External, Internal | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 1.7V ~ 5.5V | 1.7V ~ 5.5V | 1.7V ~ 5.5V | 1.7V ~ 5.5V |
| INL/DNL (LSB) | ±0.5, ±0.5 | ±0.5, ±0.5 | ±0.5, ±0.5 | ±0.5, ±0.5 |
| Architecture | R-2R | R-2R | R-2R | R-2R |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |

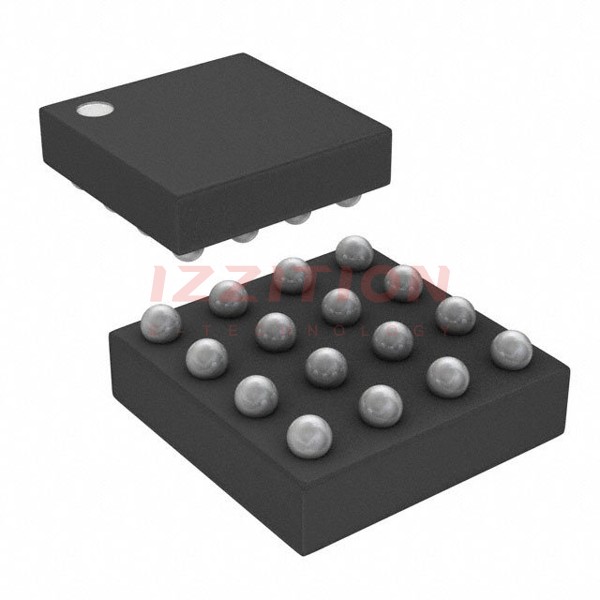

| Package / Case | 16-UFBGA, DSBGA | 16-UFBGA, DSBGA | 16-UFBGA, DSBGA | 16-UFBGA, DSBGA |
| Supplier Device Package | 16-DSBGA | 16-DSBGA | 16-DSBGA | 16-DSBGA |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
