DAC60508MCYZFT
  • Share:

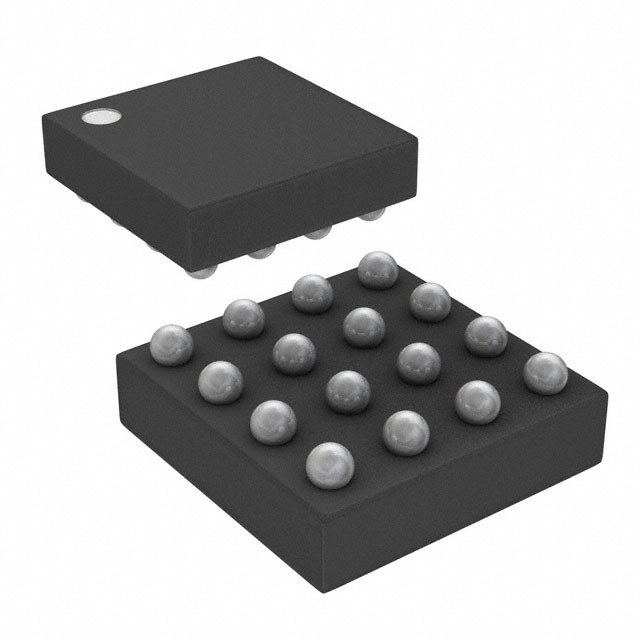

Texas Instruments DAC60508MCYZFT

Manufacturer No:
DAC60508MCYZFT
Manufacturer:
Texas Instruments
Package:
Tape & Reel (TR)
Datasheet:
DAC60508MCYZFT Datasheet
ECAD Model:
-
Description:
IC DAC 12BIT V-OUT 16DSBGA
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Bits:12
Number of D/A Converters:8
Settling Time:5µs (Typ)
Output Type:Voltage - Buffered
Differential Output:No
Data Interface:SPI
Reference Type:External, Internal
Voltage - Supply, Analog:2.7V ~ 5.5V
Voltage - Supply, Digital:1.7V ~ 5.5V
INL/DNL (LSB):±0.5, ±0.5
Architecture:R-2R
Operating Temperature:-40°C ~ 125°C
Package / Case:16-UFBGA, DSBGA
Supplier Device Package:16-DSBGA
Mounting Type:Surface Mount
0 Remaining View Similar

In Stock

$18.54
24

Please send RFQ , we will respond immediately.

Similar Products

Part Number DAC60508MCYZFT DAC60508ZCYZFT   DAC60508MYZFT   DAC60508MCYZFR
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Product Status Active Active Active Active
Number of Bits 12 12 12 12
Number of D/A Converters 8 8 8 8
Settling Time 5µs (Typ) 5µs (Typ) 5µs (Typ) 5µs (Typ)
Output Type Voltage - Buffered Voltage - Buffered Voltage - Buffered Voltage - Buffered
Differential Output No No No No
Data Interface SPI SPI SPI SPI
Reference Type External, Internal External, Internal External, Internal External, Internal
Voltage - Supply, Analog 2.7V ~ 5.5V 2.7V ~ 5.5V 2.7V ~ 5.5V 2.7V ~ 5.5V
Voltage - Supply, Digital 1.7V ~ 5.5V 1.7V ~ 5.5V 1.7V ~ 5.5V 1.7V ~ 5.5V
INL/DNL (LSB) ±0.5, ±0.5 ±0.5, ±0.5 ±0.5, ±0.5 ±0.5, ±0.5
Architecture R-2R R-2R R-2R R-2R
Operating Temperature -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C (TA) -40°C ~ 125°C
Package / Case 16-UFBGA, DSBGA 16-UFBGA, DSBGA 16-UFBGA, DSBGA 16-UFBGA, DSBGA
Supplier Device Package 16-DSBGA 16-DSBGA 16-DSBGA 16-DSBGA
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
