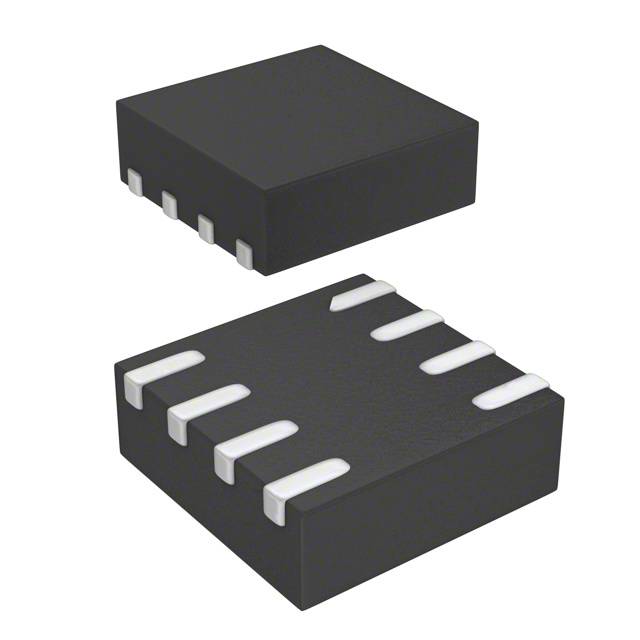

| Part Number | DAC60501ZDQFR | DAC60501ZDQFT | DAC70501ZDQFR | DAC60501MDQFR |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active |
| Number of Bits | 12 | 12 | 14 | 12 |
| Number of D/A Converters | 3 | 1 | 1 | 1 |
| Settling Time | 5µs (Typ) | 5µs (Typ) | 5µs (Typ) | 5µs (Typ) |
| Output Type | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered |
| Differential Output | No | No | No | No |
| Data Interface | I²C, SPI | I²C, SPI | I²C, SPI | I²C, SPI |
| Reference Type | External, Internal | External, Internal | External, Internal | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) |
| Architecture | R-2R | R-2R | R-2R | R-2R |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Package / Case | 8-WFDFN | 8-WFDFN | 8-WFDFN | 8-WFDFN |
| Supplier Device Package | 8-WSON (2x2) | 8-WSON (2x2) | 8-WSON (2x2) | 8-WSON (2x2) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
