| Part Number | DAC5672MPFBREP | DAC5652MPFBREP | DAC5662MPFBREP | DAC5672MPFBEP |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active |
| Number of Bits | 14 | 10 | 12 | 14 |
| Number of D/A Converters | 2 | 2 | 2 | 2 |
| Settling Time | 20µs (Typ) | 20ns (Typ) | 20ns (Typ) | 20µs (Typ) |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered |
| Differential Output | Yes | Yes | Yes | Yes |
| Data Interface | Parallel | Parallel | Parallel | Parallel |
| Reference Type | External, Internal | External, Internal | External, Internal | External, Internal |
| Voltage - Supply, Analog | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V |
| Voltage - Supply, Digital | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V |
| INL/DNL (LSB) | ±1.1, ±0.75 | ±0.25, ±0.16 | 0.3, 0.2 | ±1.1, ±0.75 |
| Architecture | Current Source | Current Source | Current Source | Current Source |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |

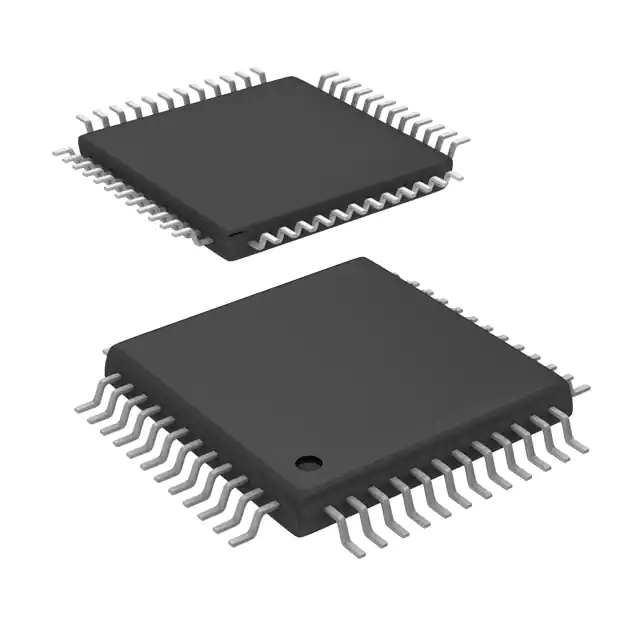

| Package / Case | 48-TQFP | 48-TQFP | 48-TQFP | 48-TQFP |
| Supplier Device Package | 48-TQFP (7x7) | 48-TQFP (7x7) | 48-TQFP (7x7) | 48-TQFP (7x7) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
