Please send RFQ , we will respond immediately.
| Part Number | DAC39J82IAAV | DAC39J82IAAVR | DAC39J84IAAV | DAC37J82IAAV | DAC38J82IAAV |
|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active |
| Number of Bits | 16 | 16 | 16 | 16 | 16 |
| Number of D/A Converters | 2 | 2 | 4 | 2 | 2 |
| Settling Time | 10ns (Typ) | 10ns (Typ) | 10ns (Typ) | 10ns (Typ) | 10ns (Typ) |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered |
| Differential Output | Yes | Yes | Yes | Yes | Yes |
| Data Interface | JESD204B | JESD204B | JESD204B | JESD204B | JESD204B |
| Reference Type | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal |
| Voltage - Supply, Analog | 3.15V ~ 3.45V | 3.15V ~ 3.45V | 3.15V ~ 3.45V | 3.15V ~ 3.45V | 3.15V ~ 3.45V |
| Voltage - Supply, Digital | 0.85V ~ 0.95V | 0.85V ~ 0.95V | 0.85V ~ 1.05V | 0.85V ~ 0.95V | 0.85V ~ 0.95V |
| INL/DNL (LSB) | ±6, ±4 | ±6, ±4 | ±6, ±4 | ±6, ±4 | ±6, ±4 |
| Architecture | Current Source | Current Source | Current Source | Current Source | Current Source |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |

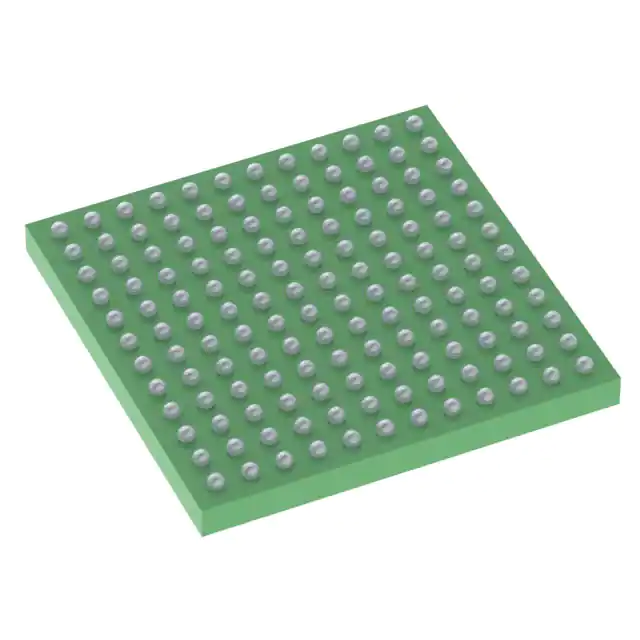

| Package / Case | 144-FBGA, FCBGA | 144-FBGA, FCBGA | 144-FBGA, FCBGA | 144-FBGA, FCBGA | 144-FBGA, FCBGA |
| Supplier Device Package | 144-FCBGA (10x10) | 144-FCBGA (10x10) | 144-FCBGA (10x10) | 144-FCBGA (10x10) | 144-FCBGA (10x10) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
