Please send RFQ , we will respond immediately.
| Part Number | DAC38RF83IAAVR | DAC38RF84IAAVR | DAC38RF93IAAVR | DAC38RF85IAAVR | DAC38RF87IAAVR | DAC38RF86IAAVR | DAC38RF89IAAVR | DAC38RF80IAAVR | DAC38RF82IAAVR | DAC38RF83IAAV |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Number of Bits | 14 | 14 | - | 14 | 14 | 14 | 14 | 14 | 14 | 14 |
| Number of D/A Converters | 2 | 1 | - | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Settling Time | 1ns (Typ) | 1ns (Typ) | - | 1ns (Typ) | 1ns (Typ) | 1ns (Typ) | 1ns (Typ) | 1ns (Typ) | 1ns (Typ) | 1ns (Typ) |
| Output Type | Voltage - Buffered | Voltage - Buffered | - | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered |
| Differential Output | Yes | No | - | Yes | Yes | Yes | Yes | No | Yes | Yes |
| Data Interface | JESD204B | JESD204B | - | JESD204B | JESD204B | JESD204B | JESD204B | JESD204B | JESD204B | JESD204B |
| Reference Type | External, Internal | External, Internal | - | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal | External, Internal |
| Voltage - Supply, Analog | 1.71V ~ 1.89V | 1.71V ~ 1.89V | - | 1.71V ~ 1.89V | 1.71V ~ 1.89V | 1.71V ~ 1.89V | 1.71V ~ 1.89V | 1.71V ~ 1.89V | 1.71V ~ 1.89V | 1.71V ~ 1.89V |
| Voltage - Supply, Digital | 0.95V ~ 1.05V | 0.95V ~ 1.05V | - | 0.95V ~ 1.05V | 0.95V ~ 1.05V | 0.95V ~ 1.05V | 0.95V ~ 1.05V | 0.95V ~ 1.05V | 0.95V ~ 1.05V | 0.95V ~ 1.05V |
| INL/DNL (LSB) | ±4, ±3 | ±6, ±4 | - | ±4, ±3 | - | - | ±4, ±3 | ±4, ±3 | ±4, ±3 | ±4, ±3 |
| Architecture | Current Source | Current Source | - | Current Source | Current Source | Current Source | Current Source | Current Source | Current Source | Current Source |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | - | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |

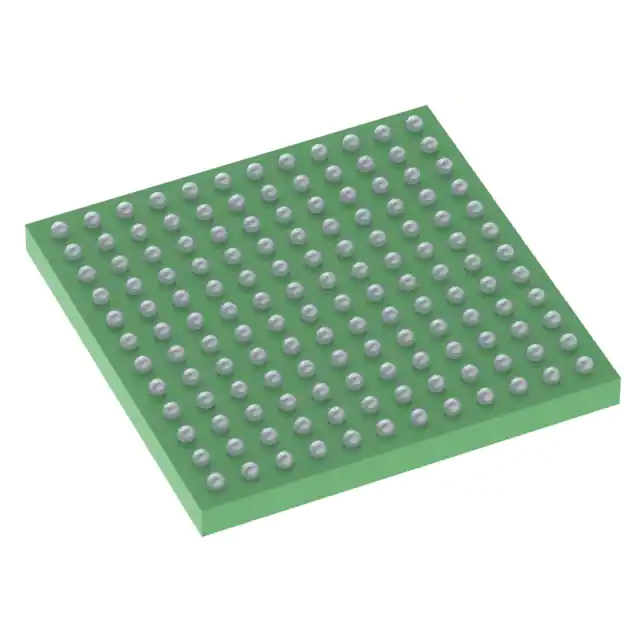

| Package / Case | 144-FBGA, FCBGA | 144-FBGA, FCBGA | 144-FBGA, FCBGA | 144-FBGA, FCBGA | 144-FBGA, FCBGA | 144-FBGA, FCBGA | 144-FBGA, FCBGA | 144-FBGA, FCBGA | 144-FBGA, FCBGA | 144-FBGA, FCBGA |
| Supplier Device Package | 144-FCBGA (10x10) | 144-FCBGA (10x10) | 144-FCBGA (10x10) | 144-FCBGA (10x10) | 144-FCBGA (10x10) | 144-FCBGA (10x10) | 144-FCBGA (10x10) | 144-FCBGA (10x10) | 144-FCBGA (10x10) | 144-FCBGA (10x10) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
