| Part Number | DAC121S101QCMK/NOPB | DAC121S101QCMKX/NOPB | DAC101S101QCMK/NOPB |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active |
| Number of Bits | 12 | 12 | 10 |
| Number of D/A Converters | 1 | 1 | 1 |
| Settling Time | 10µs | 10µs | 7.5µs |
| Output Type | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered |
| Differential Output | No | No | No |
| Data Interface | SPI, DSP | SPI, DSP | SPI, DSP |
| Reference Type | Supply | Supply | Supply |
| Voltage - Supply, Analog | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| INL/DNL (LSB) | ±8 (Max), ±0.5/+1 (Max) | ±8 (Max), ±0.5/+1 (Max) | ±0.6, +0.15/-0.05 |
| Architecture | String DAC | String DAC | String DAC |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |

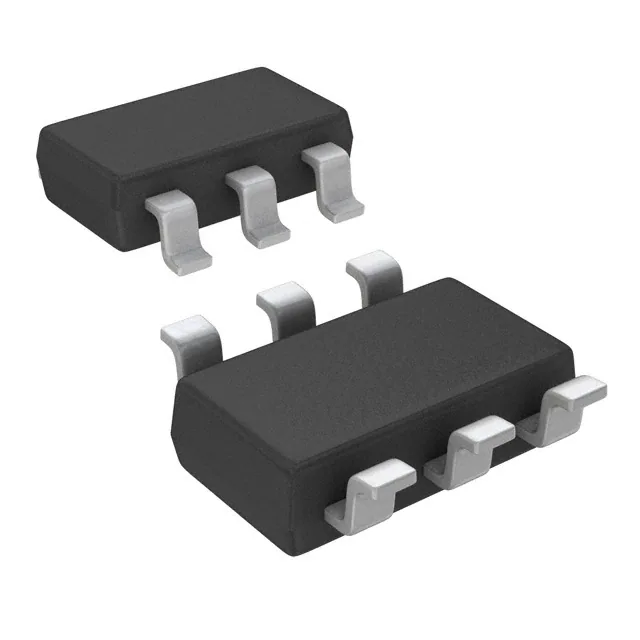

| Package / Case | SOT-23-6 Thin, TSOT-23-6 | SOT-23-6 Thin, TSOT-23-6 | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package | TSOT-23-6 | TSOT-23-6 | TSOT-23-6 |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
